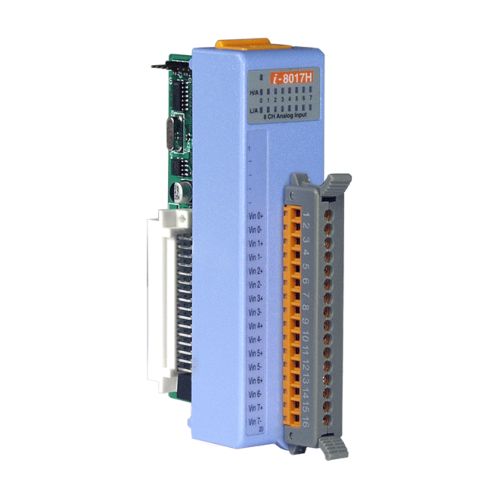

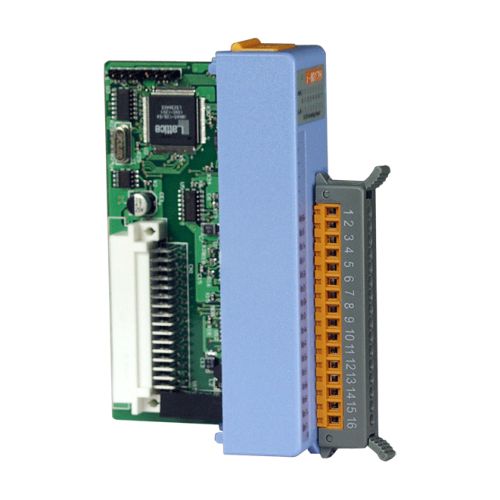

I-8017H CR
8-ch Analog input Module
Free Shipping
Analog Input
Input Channels: 8-ch Differential
Input Range:
+/- 10V, +/- 5V, +/- 2.5V, +/- 1.25V
-20mA ~ +20mA(Requires Optional External 125 Ohm Resistor)
Resolution: 14-bit
Sample Rate:
Single Channel Polling Mode: 100K S/s
Single Channel Interrupt Mode: 50K S/s
8 channel Scan Mode: 16 K S/s
Accuracy: ±0.1% of FSR
Input Impedance: 20K,200K,20M(Jumper Select)
Input Bandwidth: 100 KHz
LED Display
1 LED as Power Indicator /16 LED as Status Indicator
Power
Power Consumption: 2W Max
Environment
Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95%, Non-condensing
Dimensions
30mm x 88mm x 115mm (W x L x H)
