I-8014W-G CR ICP DAS Current IO Modules

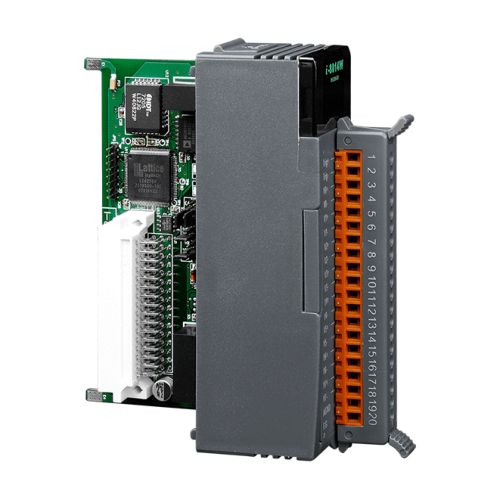

I-8014W-G CR

16/8-channel Voltage/Current Input Module, 250 kS/s,16-bit



€ 347,59

(VAT excluded)

€ 424,06(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 424,06

Availability: 15 business days

SKU: 4325

Model: I-8014W-G CR

Need Help?

  • 16-bit 250KHz ADC converter
  • 16 single-ended/8 differential inputs (jumper selectable)
  • 4K-samples FIFO buffer
  • External trigger mode: post-trigger
  • Input Range: +/- 10V, +/- 5V, +/- 2.5V, +/- 1.25V, +/- 20mA
  • Internal/external trigger start
  • Magic Scan Type
  • Type 1: standard
  • Each Sample clock only samples a single.
  • Type 2: virtual Sample and hold
  • Each sample clock will to sample all scan channels that have been set.

The I-8014W is a high performance analog input module. Up to 16-channel single-ended or 8-channel differential inputs can be connected to one module. It features 16-bit resolution, 250Ks/s sampling rates, and 4K-sample FIFO. It provides isolation protection of 2500 Vrms.

The I-8014W contains an impressive scan function called Magic Scan, which is able to improve many of the functions and meets the demands of high-end users. The Magic Scan mechanism not only scans the different input channels at vastly different rates, but also at different gains. Even in a multi-channel scan, the sampling rates can be maintained at 250KS/s. The I-8014W contains two types of Magic Scan. One is a standard Scan and the other is a virtual Sample and hold function. Almost all AI Cards are expensive if they provide a sample and hold function, but ICP DAS can now provide you with a low-cost alternative.

The I-8014W provides 4K-sample onboard FIFO buffer for AD. The new FIFO technology uses a trigger interrupt signal. Meaning that if the sample count is higher than the pre-defined FIFO level, an interrupt signal will notify the host. High accuracy, a high-speed sample rate, a high-level FIFO and all new Magic Scan technology are all included in the I-8014W,so It’s time to upgrade your analog input module to the I-8014W.

Analog Input

Input Channels: 16-ch Single-ended/8-ch Differential
Input Range:
         +/- 10V, +/- 5V, +/- 2.5V, +/- 1.25V
         -20mA ~ +20mA(Requires Optional External 125 Ohm Resistor)
Resolution: 16-bit
Sample Rate: Single Channel Polling Mode: 250K S/s
FIFO: 4K Words
Accuracy: 0.05% of FSR +/- 1LSB
Scan Mode: Polling, Pacer
Scan Function: Magic Scan Type 1, Magic Scan Type 2
Overvoltage protection: +60 V~ -45 V
Input Impedance: 20K,200K,20M(Jumper Select)
Intra-module Isolation, Field to Logic: 2500 Vrms

LED Display

1 LED as Power Indicator


Power Consumption: 2.5W Max


Operating Temperature: -25 ~ 75°C
Storage Temperature: -30 ~ 85°C
Humidity: 5 to 95% RH, Non-condensing


30mm x 102mm x 115mm (W x L x H)
