I-7565M-HS CR ICP DAS Fieldbus Converters


I-7565M-HS CR

High Speed USB to 2-port CAN Bus Converter



€ 277,62

(VAT excluded)

€ 338,70(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 338,70

Availability: 15 business days

SKU: 110877

Model: I-7565M-HS CR

Need Help?

  • Compatible with USB 2.0 (High Speed)
  • Compatible with the ISO 11898-2 standard
  • Support both CAN2.0A and CAN2.0B specifications
  • No external power supply (powered by USB)
  • Programmable CAN Bus baud rate from 10kbps to 1000kbps
  • Support CAN Bus message filter configuration
  • Timestamp of CAN message with at least ±10us precision
  • Watchdog inside
  • Provide PWR, CAN Tx/Rx and CAN status indication LEDs
  • Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
  • Support firmware update via USB
  • Provide utility tool for users module setting and CAN Bus communication testing conveniently
  • Provide API library for user program development

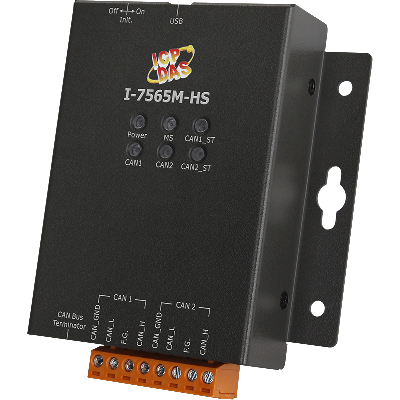

I-7565M-HS is a high speed USB to CAN converter with two CAN channels. It improves the transformation speed of other I-7565 series, and allows receiving max. 15000 standard 2.0A CAN frames per second. I-7565M-HS support CAN2.0A/2.0B protocol and different baud rates from 10 kbps to 1000 kbps. The important feature of I-7565M-HS is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565M-HS to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-HS. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.
The following is the application structure for the USB to CAN module. The PC can be the CAN host, monitor or HMI to access/control the CAN devices through the CAN network by the I-7565M-HS Converter. The module let users to communicate with CAN devices easily from PC with USB interface.


  • Control System
  • Building Automation
  • Factory Automation
  • Monitor System
  • Vehicle Automation


  • Provide CAN Bus baud rate / acceptance filter configuration
  • Easily transmit/receive CAN messages for testing and display the time-stamp of each received CAN message
  • Provide saving the CAN message as “TXT” file for data log
  • Provide sending CAN message by using the internal timer of module for high precision transmission
  • Check / Reset module status remotely and get current CAN Bus message flow


CAN Interface
Transceiver: NXP TJA1042
Channel Number: 2
Connector: 8-pin terminal-block connector
Transmission Speed: 10 ~ 1000 kbps
Terminal Resistor: DIP switch for the 120 Ω terminal resistor
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
CAN Filter Configuration: Selectable whitelist and blacklist CAN ID filter via Utility tool
Receive Buffer: 512 data frames
Max Data Flow: 15000 fps for Tx/Rx
USB Interface

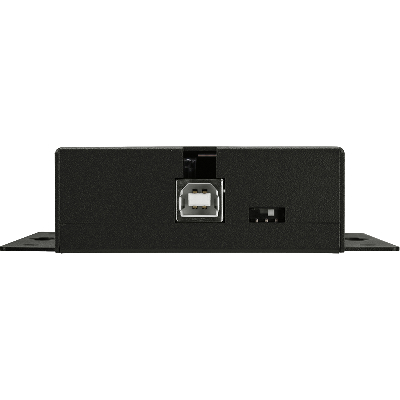

Connector: USB Type B
Compatibility: USB 2.0 High Speed (480Mbps)
Software Driver: Built-in Windows 2K/XP/7/8/10
Round LED: Power, MS, CAN1, CAN2, CAN1_ST, CAN2_ST LEDs
Power supply: USB power delivery
Power Consumption: 1.5 W (Max.)
Installation: Wall Mount
Casing: Metal
Dimensions: 111.0 mm x 102.0 mm x 27.0 mm (W x L x H)
Operating Temp.: -25 ~ 75 ℃
Storage Temp.: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
