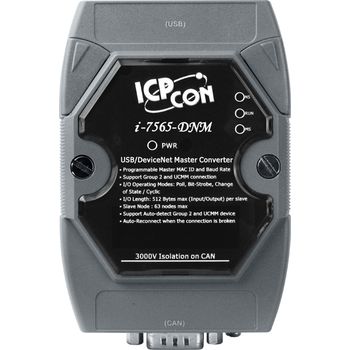

I-7565-DNM-G CR
USB/DeviceNet Master Converter with D-sub 9-pin connector
- Fully compliant with USB 1.1/2.0 (Full Speed)
- No external power supply is required as I-7565-DNM takes it's power from the USB bus
- DeviceNet Version: Volume I & II, Realase 2.0
- Programmable Master MAC ID and Baud Rate
- Baud Rate: 125K, 250K, 500K bps
- Support Group 2 and UCMM connecion
- I/O Operating Modes: Poll, Bit-Strobe, Change of State/Cyclic
- I/O Lenght: 512 Bytes max (Input/Output) per slave
- Slave Node: 63 nodes max
- Support Auto:Search slave device function
- Support on-line adding and removing devices
- Support Auto-detect Group 2 and UCMM device
- Status LED: RUN, MS, NS
- Windows 98/ME/2000/XP/Linux drivers supported
- Free Software development tools for Windows
The I-7565-DNM is a DeviceNet master solution for USB interface built-in 80 MHz 186CPU. It acts the DeviceNet master device and communicates with the remote slave devices. There is a complete DeviceNet protocol firmware in the I-7565-DNM. Users can easily access the slave device via I-7565-DNM by using USB port and need not to deal with the complex DeviceNet protocol. By using the powerful Utility tool, user can diagnose the slave devices without any programming. The various development tools are supported for VB, VC, and BCB...
Hardware
CPU: 80186, 70 MHz or compatible
SRAM/Flash/EEPROM: 512 KB / 512 KB, 16 KB
ESD Protection: 2kV class A
CAN Interface
Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Channel number: 1

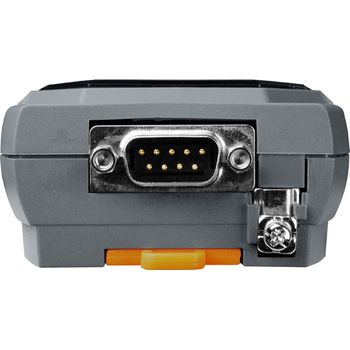

Connector: 9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+, N/A for others)
Baud Rate (bps): 125k, 250k, 500
Transmission Distance (m): Depend on baud rate (for example, max 1000m at 50kbps)
Isolation: 3000Vdc for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor: Jumper for 120 Ω terminator resistor
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Protocol: DeviceNet Volumn I ver2.0, Volumn II ver2.0
USB Interface

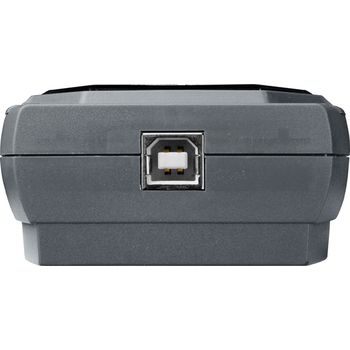

Connector: USB Type B
Transmission Speed: 921.6 kbps
Specification: USB 1.1 and 2.0
Power
Power Supply: By USB interface
Power Consumption: 3W
LED
Round LED: PWR LED, RUN LED, NS LED, MS LED
Software
Driver: Windows 98/ME/NT/2K/XP/7
Library: VB 6.0, VC++6.0, BCB 6.0
Mechanism
Installation: DIN-Rail
Dimensions: 72mm x 101mm x 33mm (W x L x H)
Environment
Operating Temp: -25℃ to 75℃
Storage Temp: -30℃ to 80℃
Humidity: 10~90% non-condensing
