I-7565-CPM-G CR ICP DAS Fieldbus Converters

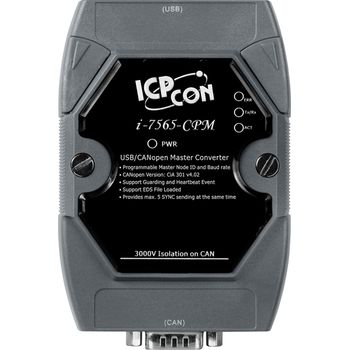

I-7565-CPM-G CR

USB to CANopen Master Converter. Supports operating temperatures between -25 to 75°C



€ 261,81

(VAT excluded)

€ 319,41(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 319,41

Availability: 15 business days

SKU: 92906

Model: I-7565-CPM-G CR

Need Help?

  • Microprocessor inside with 20MHz
  • RoHs Design
  • Fully compliant with USB 1.1/2.0(Full Speed)
  • Fully compatible with the ISO 11898-2 standard
  • No external power supply is required as I-7565 takes it's power from the USB bus
  • 82C250 CAN transceiver
  • Transmission speed up to 1M bps for CAN and 921.6K bps for USB
  • Support both CAN 2.0A and CAN 2.0B
  • Built-in jumper to select 120 ohm terminal resister
  • Power, data flow and error indicator for CAN and USB
  • 1000 frames in CAN received buffer
  • Watchdog inside
  • Windows 98/ME/2000/XP/Linux drivers support
  • Linux driver supported

CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The I-7565 is a cost-efficient device for coupling the CAN-bus to the PC using the standard USB interface. Nowadays the interface is present in every new PC and is supported by the MS-Windows 98, Me, 2000 and XP operating systems. If you establish the connection between the I-7565 and the PC during the runtime of the computer, the PC automatically loads the relevant device driver (hot plug & play).
The following figure shows the application architecture for I-7565 modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7565 Converter. This module let you to communicate with CAN devices easily from PC with USB interface.
3000V isolation on CAN side
The CAN port of I-7565 is an isolated with 3000V isolation. This isolation can protect the local devices from the damage signal coming from CAN network.
Watchdog inside
The I-7565 Watchdog is a hardware reset circuit to monitor the I-7565’s operation status. When working in harsh or noisy environment, the I-7565 may be down by the external signal. The circuit may let the I-7565 to work continuously and never halt.
Power and Error indicator display
There are two indicators on the I-7565.The power indicator can help user to check whether the I-7565 is standby or transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7565.


EEPROM: 2 KB (for system information), 100,000 erase/write cycles


Port Channels: 1
Transceiver: Philips 82C250
Connector: 9-pin male D-Sub (CAN_L, CAN_SHLD, CAN_H, N/A for others)
Baud Rate: 10 k, 20 k, 50 k, 100 k, 125 k, 250 k, 500 k, 800 k and 1 Mbps
Isolation: 3000 Vrms on the CAN side
Terminator Resistor: Selectable 120 Ω terminator resistor by jumper
Support Protocol: CAN 2.0A/2.0B
Receive Buffer: 1000 data frames
Max Data Flow: 250 fps

UART Interface

Connector: USB Type B
Baud Rate: 921.6 kbps fixed
Compatibility: USB 1.1 and 2.0 standard
Receive Buffer: 900 data frames


Power Consumption: 1.5W


Round LED: ON LED: Power and Data Flow; ERR LED: Error


Installation: DIN-Rail
Dimensions: 72mm x 112mm x 33mm (W x L x H)


Operating Temp: -25℃ to 75℃
Storage Temp: -30℃ to 80℃
Humidity: 10~90% non-condensing
