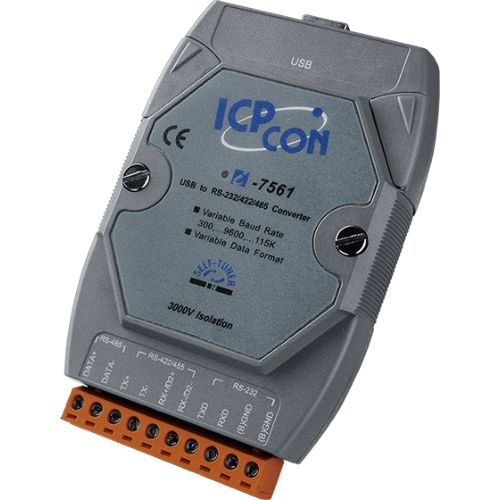

I-7561-G CR
USB to Isolated RS-232/422/485 Converter with CA-USB18 Cable
Free Shipping
Features
- Fully Compliant with the USB 1.1/2.0/3.0
- 3000 VDC Isolation Protection on the RS-232/422/485 side
- ESD Protection for the RS-232/422/485 Data Line
- No External Power Supply required
- Automatic RS-485 Direction Control
- Operating Temperatures, -25 °C ~ +75 °C
- DIN-Rail Mounting
Introduction
The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like the I-7520A, the I-7561 contains "Self-Tuner" chip auto-tunes the Baud Rate and data format to the RS-485 network.The I-7561 module derives its power from the USB port and doesn't need any power adapter.
Specifications
LED Indicators
Status: 1 x Power and Communication
COM Ports
Ports: 1 x RS-232/422/485
Baud Rate: 300 ~ 115200 bps
USB
Specification: Fully Compliant with the USB 1.1/2.0/3.0
Connector: Type B
Power
Input Range: +5 VDC from USB
Consumption: 0.5 W
Mechanical
Casing: Plastic
Dimensions (mm): 72 x 115 x 35 (W x L x H)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 10 ~ 90% RH, non-condensing
