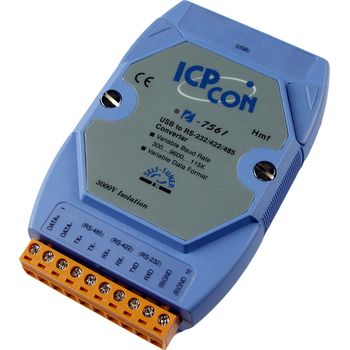

I-7561 CR ICP DAS USB Converter


I-7561 CR

USB to Isolated RS-232/422/485 Converter with CA-USB18 Cable



€ 115,12

(VAT excluded)

€ 140,45(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 140,45

Availability: limited

SKU: 3472

Model: I-7561 CR

Need Help?

  • Fully Compliant with the USB 1.1/2.0 (High Speed)
  • No External Power Supply required.
  • Baud Rate, 300 ~ 115200 bps
  • 3000 VDC Isolation Protection on the RS-232/422/485 side
  • ESD Protection for the RS-232/422/485 Data Line
  • Operating Temperatures, -25 °C ~ +75 °C
  • Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
  • DIN-Rail

The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like the I-7520A, the I-7561 contains "Self Tuner" chip auto-tunes the Baud Rate and data format to the RS-485 network.The I-7561 module derives its power from the USB port and doesn't need any power adapter. It also features a high-speed 115.2 kbps transmission rate, and supports various O.S. independent RS-232/422/485 Ports.


USB: Compatibility: USB 1.1 and 2.0 standards
Serial Interface:
        RS-232 TxD, RxD, GND
        RS-422: TxD+, TxD-, RxD+, RxD = The RS-232, RS-422 and RS-485 cannot be used simultaneously
        RS-485: Data+, Data-
2-wire cabling/4-wire cabling: Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change RS-422/485 Transfer Distance: Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
Maximum Supported RS-485 Devices: 256 (Without repeater)
Self-Tuner Asic Inside (RS-485): Yes
Speed: 300 ~ 115200 bps
Connection: RS-232/422/485 Removable 10-Pin Terminal Block
USB: Type B
Cable Included: CA-USB18 (1.8 m Cable) x 1

LED Indicators

Power: Yes


Input Voltage Range: +5 VDC From USB
Power consumption: 0.1A @ 5V = 0.5W, +/- 5%


Case: Plastic
Flammability: UL 94V-0 materials
Dimensions: 61 mm x 33 mm x 15 mm
Installation: DIN-Rail


Operating Temperature: -25°C ~ 75 °C
Storage Temperature: -30°C ~ 75 °C
Ambient Relative Humidity: 10% ~ 90% RH, non-condensing
