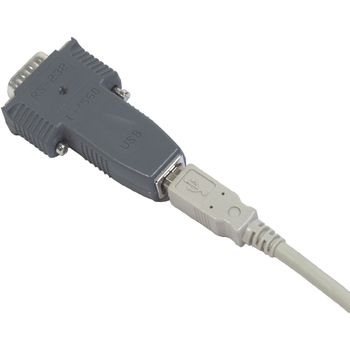

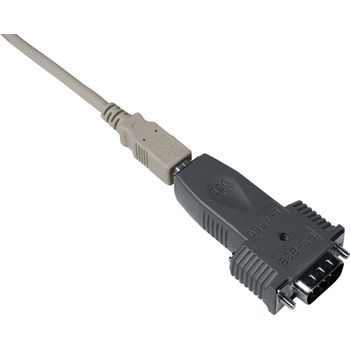

I-7560 CR
USB to RS-232 Converter with CA-USB18 Cable
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- No External Power Supply required.
- Baud Rate, 300 ~ 115200 bps
- Operating Temperatures, -25 °C ~ +75 °C
- Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
The I-7560 contains a Windows serial com port via it's USB connection and is compatible with new and legacy RS-232 devices. USB Plug-and-Play allows easy serial port expansion and requires no IRQ, DMA, or I/O port resources. The I-7560 features a full set of RS-232 modem data and control signals (TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND) on it's PC compatible DB-9 male connector. It also features a high-speed 115200 bps transmission rate. The I-7560 is powered from the USB bus and no additional power supply is needed.
Interface
USB Compatibility: USB 1.1 and 2.0 standards
RS-232: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND; non-isolated
Speed: 300 ~ 115200 bps
Connection:
RS-232: 9-Pin Male D-Sub
USB: Type B
Cable Included: CA-USB18 (1.8 m Cable) x 1
LED Indicators
Power: Yes
Power
Input Voltage Range: +5 VDC from USB
Power Consumption: 0.3 W
Mechanical
Casing: Plastic
Flammability: Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x H x D): 33 mm x 60 mm x 15 mm
Environment
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +75 °C
Humidity: 10 ~ 90% RH, non-condensing
