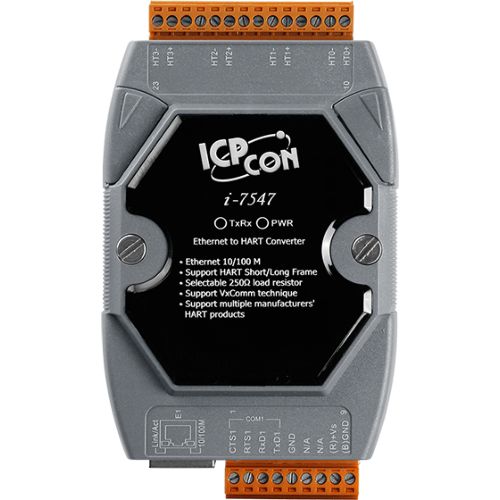

I-7547 CR
Ethernet To HART Converter. Supports operating temperatures from -25°C ~ +75°C. Allow users to access HART devices through a PC's virtual COM port.
Free Shipping
Features
- Support HART Short/Long frame
- Support HART Burst mode
- Support point-to-point or multi-drop HART mode
- Support connecting up to 15 HART slave devices
- Allow two HART masters
- Provide HC_Tool utility for module configuration and HART communication
- Support firmware update via Ethernet
- 4KV ESD Protection
- Built-in Watchdog
- Selectable 250Ω load resistor
- Provide four HART channels
- Support VxComm technique
- Built-In Web Server for network setting
- Support HART Pair-Connection
Introduction
I-7547 is an Ethernet to HART converter and can be used as a HART master with HC_Tool utility or a HART slave with HDS utility.
(1) I-7547 as HART Master :
When connecting I-7547 to PC via Ethernet and install the VxComm utility, it will allow users to access the HART devices via virtual COM-port of PC. Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7547. In addition, we also provide the free HC_Tool utility for module configuration and HART communication test easily.
Applications
Current Measuring
Petrochemical Industry Application
Environment Monitoring
Tunnel Monitoring
Monitor system
Building Monitoring
Specifications
LED Indicators
Status: PWR : Power Indicator
TxRx : Data Received from Ethernet / HART Indicator
Ethernet
Ports: 10/100 Base-TX with Auto MDI/MDI-X
Built-In Web Server: Yes
Virtual COM: Yes (VxComm Utility)
HART
Ports: 4
Terminal Resistor: Selectable 250 Ω terminal resistor for each HART port
Isolation: 500 VDC
Power
Reverse Polarity Protection: Power reverse polarity protection, Over-voltage brown-out protection
Input Range: Unregulated +10 ~ +30 VDC
Consumption: Maximum : 1.5W
Mechanical
Dimensions (mm): 123 x 72 x 35 (H x W x D)

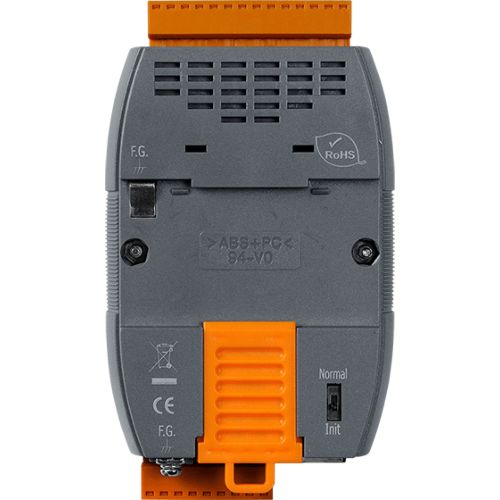

Installation: DIN-Rail or Wall Mounting
Environment
Operating Temperature: -25 ~ +75 °C (-13 to 167 ℉)
Storage Temperature: -30 ~ +80 °C (-22 to 176 ℉)
Humidity: 5% ~ 95% RH, Non-condensing
