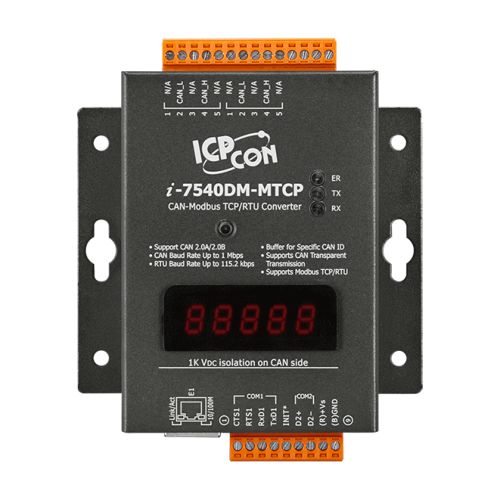

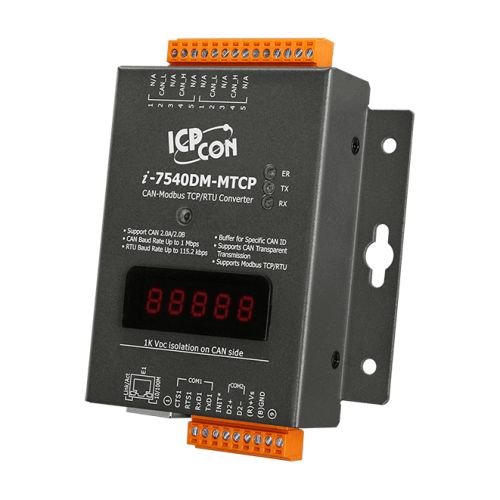

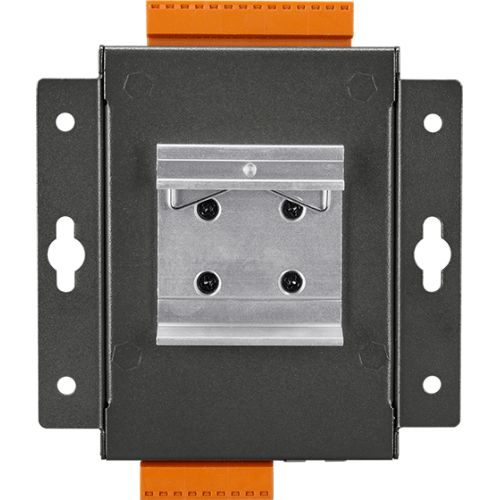

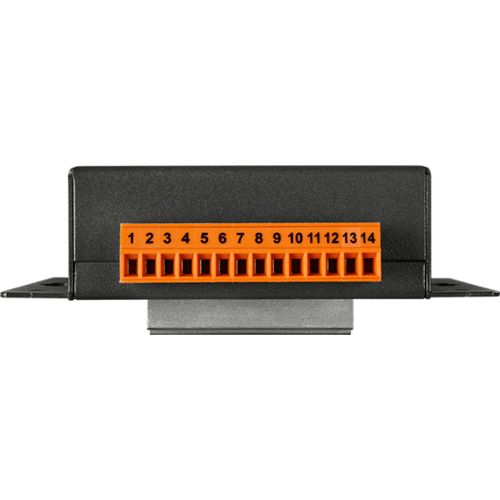

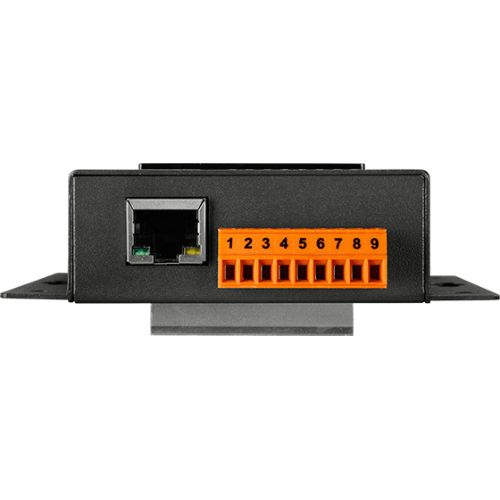

I-7540DM-MTCP CR ICP DAS Gateways

Introduction

The I-7540DM-MTCP is helpful for data exchanging between the Modbus devices and CAN devices. I-7540DM-MTCP is a Modbus TCP server and acts as slave device in Modbus RTU network. It supports four communication modes: Modbus TCP, Modbus RTU, CAN-Ethernet Convert and Pair connection.

The major function of the I-7540DM-MTCP is CAN to Modbus TCP/RTU gateway. It allows Modbus TCP/RTU device to communicate with CAN device on a CAN network. I-7540DM-MTCP supports the function codes 0x03/0x04/0x10 of Modbus TCP/RTU for reading and writing CAN messages.

Furthermore, The device supports a transparent, protocol-independent transfer of the CAN messages, thus allowing its implementation into a wide range of possible applications. Furthermore, the CAN-Modbus Converter can be used with various higher layer CAN protocols (e.g. CANopen, DeviceNet or other proprietary protocols). The following figure shows the application architecture for CAN-Modbus Converter.

Features

80186-80 Embedded CPU, or compatible
Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
COM driver support interrupt & 1K QUEUE Input & Output buffer
Provide 200 CAN frames buffer in CAN to Modbus Mode
NXP 82C 250 CAN Transceiver
Support both CAN specification 2.0A and 2.0B
Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
Max transmission distance of CAN over 1000m (follow CAN specification)
7-segment LED display to Module IP, RS-232 baud rate, CAN configuration…
Software configurable CAN and RS-232 communication parameters
Firmware updated from COM1 or Ethernet port
Support Web Configuration
Support maximum 24 Ethernet clients connection
Support function code 0x03/0x04/0x10 of Modbus TCP/RTU command for reading and writing CAN message
Provide the transparent communication between the CAN devices via Ethernet
Support 30 specific CAN IDs in the Modbus TCP/RTU mode

Applications

• Factory Automation
• Building Automation
• Home Automation
• Control System
• Monitor System
• Vehicle Automation
