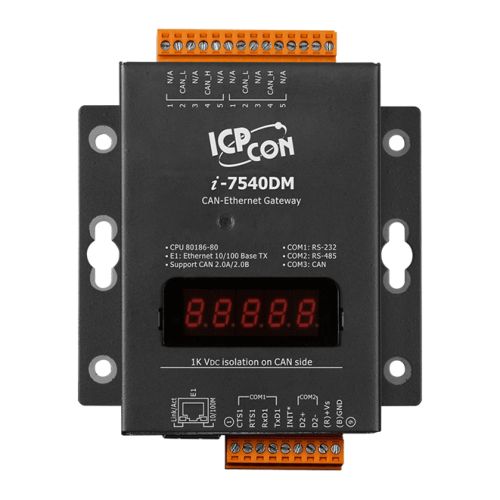

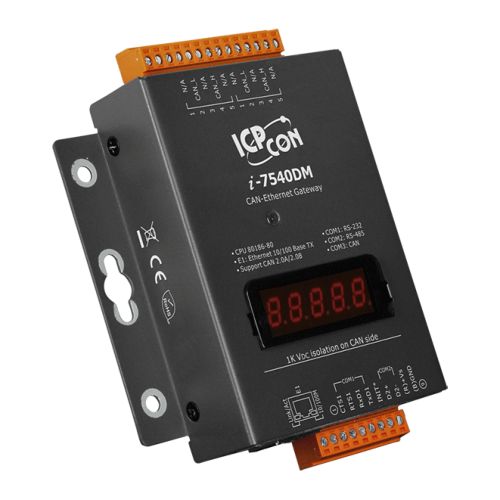

I-7540DM CR, CAN to Ethernet Gateway
I-7540DM CR
CAN to Ethernet Gateway
Features
- 80186-80 Embedded CPU, or compatible
- Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
- Reloadable Operating Software
- Message transmitted by using TCP/IP protocol
- COM driver support interrupt & 1K QUEUE Input & Output buffer
- Support one RS-232 port, one RS-485 port and one CAN port
- 2500Vrms photo-isolation protection on CAN side.
- Jumper select 120Ω terminal resistor for CAN channel
- Phillip 82C 250/251CAN Transceiver
- Support both CAN specification 2.0A and 2.0B.
- Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
- Max transmission distance of CAN over 1000m (follow CAN specification)
- Built-in self-tuner ASIC controller on RS-485 port
- Software configurable CAN and RS-232 communication parameters
- Firmware updated from COM1 or Ethernet port
- Support Web Configuration
- Support maximum 25 Ethernet clients connection
- Support for Virtual COM technology
Introduction
The I-7540D series are CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications, which may be based on private RS-232 protocol, private CAN protocol, Modbus protocol, CANopen protocol, DeviceNet protocol or J1939 protocol.
Specifications
LED Indicators
Status: 1 x Power
COM Ports
Ports: 1 x RS-232
1 x RS-485 (self-turner ASIC inside)
Baud Rate: 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity: None, Even, Odd
Data Bit: 7,8
Stop Bit: 1
Ethernet
Ports: 1 x RJ-45, 10/100Base-T(X)
CAN
Controller: NXP SJA1000T with 16 MHz clock
Ports: 1
Baud Rate: 10 k ~ 1 M bps
Isolation: 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor: Jumper for 120 Ω terminal resistor
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter: Yes
Power
Input Range: +10 VDC ~ +30 VDC
Consumption: 2.5 W
Mechanical
Casing: Metal
Dimensions (mm): 102 x 125 x 28 (W x L x H)
Installation: Wall Mount
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
