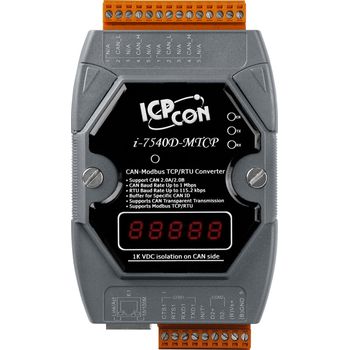

CAN to Ethernet / Modbus TCP / Modbus RTU Converter (Plastic Case) (RoHS)

Quantity:

Price

€ 325,02

(VAT excluded)

€ 396,52(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 396,52

Availability: 15 business days

SKU: 92905

Model: I-7540D-MTCP CR

Need Help?


features and benefits

The I-7540D-MTCP is helpful for data exchanging between the Modbus devices and CAN devices.
I-7540D-MTCP is a Modbus TCP server and acts as slave device in Modbus RTU network.
It supports four communication modes: Modbus TCP, Modbus RTU, CAN-Ethernet Convert and Pair connection. The major function of the I-7540D-MTCP is CAN to Modbus TCP/RTU gateway.
It allows Modbus TCP/RTU device to communicate with CAN device on a CAN network.
I-7540D-MTCP supports the function codes 0x03/0x04/0x10 of Modbus TCP/RTU for reading and writing CAN messages. The device supports a transparent, protocol-independent transfer of the CAN messages, thus allowing its implementation into a wide range of possible applications.
Furthermore, the CAN-Modbus Converter can be used with various higher layer CAN protocols (e.g.
CANopen, DeviceNet or other proprietary protocols).

  • 80186-80 Embedded CPU, or compatible
  • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • Provide 200 CAN frames buffer in CAN to Modbus Mode
  • NXP 82C 250 CAN Transceiver
  • Support both CAN specification 2.0A and 2.0B
  • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
  • Max transmission distance of CAN over 1000m (follow CAN specification)
  • 7-segment LED display to Module IP, RS-232 baud rate, CAN configuration
  • Software configurable CAN and RS-232 communication parameters
  • Firmware updated from COM1 or Ethernet port
  • Support Web Configuration
  • Support maximum 24 Ethernet clients connection
  • Support function code 0x03/0x04/0x10 of Modbus TCP/RTU command for reading and writing CAN message
  • Provide the transparent communication between the CAN devices via Ethernet
  • Support 30 specific CAN IDs in the Modbus TCP/RTU mode

specifications

LED Indicators
Status1 x Power3 x CAN status
Ethernet
Ports1 x RJ-45, 10/100Base-T(X)
COM Ports
Ports1 x RS-2321 x RS-485 (self-turner ASIC inside)
Baud Rate110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
ParityNone, Even, Odd
Data Bit7, 8
Stop Bit1
CAN
ControllerNXP SJA1000T with 16 MHz clock
Ports1
Baud Rate10 k ~ 1 M bps
Isolation1000 VDC for DC-to-DC, 2500 Vrms for photo-coupler
Terminal ResistorJumper for 120 Ω terminal resistor
SpecificationISO-11898-2, CAN 2.0A and CAN 2.0B
FilterYes
Power
Input Range+10 VDC ~ +30 VDC
Consumption2.5 W
Mechanical
CasingPlastic
Dimensions (mm)72 x 122 x 33 (W x L x H)
InstallationDIN-Rail
Environment
Operating Temperature-25 ~ +75 °C
Storage Temperature-30 ~ +80 °C
Humidity10 ~ 90% RH, Non-condensing
