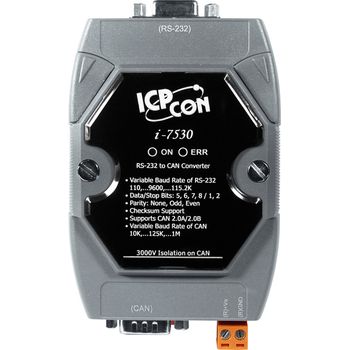

I-7530-G CR ICP DAS Fieldbus Converters

• Compatible with CAN specification 2.0A and 2.0B
• Fully compatible with ISO 11898-2 standard (for I-7530)
• Fully compatible with ISO 11898-3 standard (low speed fault tolerance) (for I-7530-FT)
• Support various baud rate from 10K bps to 1M bps
• Jumper for 120 Ω terminator resistor (for I-7530)
• Software configurable CAN and RS-232 communication parameters
• Power, data flow and error indicator for CAN and RS-232
• Watchdog inside
• Support transparent communication mode
• 1000 frames in CAN received buffer and 900 frames in RS-232 received buffer

CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The following figure shows the application architecture for I-7530/I-7530-FT modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7530/I-7530-FT Converters. The programmable RS-232 device (For example: I-8411/I-8431/I-8811/I-8831/W-8031/W-8331/W-8731 embedded controller) can use the serial port to connect to the CAN network via the I-7530/I-7530-FT modules. In order to use the CAN network with traditional RS-232 devices, we provide a way to achieve this purpose. The I-7530/I-7530-FT are designed to unleash the power of CAN bus via RS-232 communication method. It accurately converts messages between CAN and RS-232 networks. This module let you to communicate with CAN devices easily from any PC or devices with RS-232 interface.
Moreover, we expand the functionalities of I-7530/I-7530-FT for some special application. In pair connection mode, I-7530/I-7530-FT can be used to connect PC with other RS-232 devices at the same time. The application architecture may be as follows.

3000V isolation on CAN side (only I-7530)

The CAN port of I-7530 is an isolated with 3000V isolation. This isolation can protect the local RS-232 devices from the damage signal coming from CAN network.

Watchdog inside

The watchdog is a hardware reset circuit to monitor the operation status. When working in harsh or noisy environment, the I-7530/I-7530-FT may shut down by the external signal. The circuit may let the I-7530/I-7530-FT to work continuously and never halt.

Power and Error indicator display

There are two indicators on the I-7530/I-7530-FT.The power indicator can help user to check whether the I-7530/I-7530-FT is standby or transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7530/I-7530-FT.

Hardware

EEPROM: 2 KB (for system information), 100,000 erase/write cycles

CAN Interface

Transceiver: NXP 82C250
Channel number: 1
Connector: 9-pin male D-Sub (CAN_L, CAN_H, N/A for others)
Baud Rate (bps): 10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps
Isolation:
         3000 VDC for DC-to-DC,
         2500 Vrms for photo-couple
Terminator Resistor: Selectable 120Ω terminator resistor by jumper
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Receive Buffer: 1000 data frames

RS-232 Interface

Connector: 9-pin female D-Sub (TxD, RxD, GND, N/A for others )
Baud Rate (bps): 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps
Data bit: 5, 6, 7, 8
Stop bit: 1, 2
Parity bit: None, Even, Odd
Receive Buffer: 900 data frames

LED

Round LED:
ON LED: Power and Data Flow;
ERR LED: Error Status

Power

Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 1W

Mechanism

Installation: DIN-Rail
Dimensions: 72mm x 118mm x 33mm (W x L x H)

Environment

Operating Temp: -25 ~ 75 ℃
Storage Temp: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
