I-7513-G CR

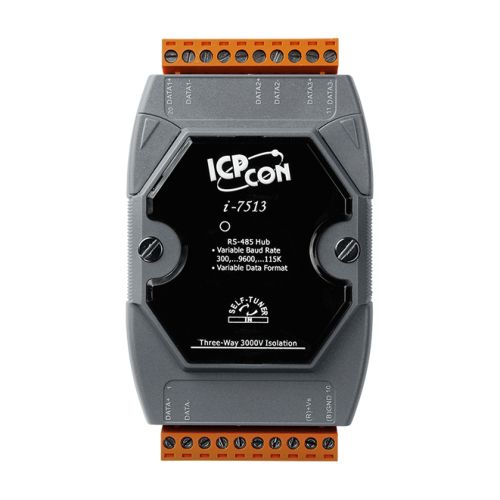

Three Way Isolated RS-485 Active Star Wiring Hub (Gray Cover)
Free Shipping
Features
- RS-485 Active Star Wiring Applications
- Automatic RS-485 Direction Control
- 3000 VDC Three Way Isolation Protection
- ESD Protection for the RS-485 Data Line
Introduction
The I-7513 is a 3-ch RS-485 Active Star Wiring Hub. The unit has three independent RS-485 output channels, each with their own driver, which can transmit signals across 4,000 ft (1200 m) of cable on each channel.
The I-7513 includes both Hub and Repeater functions, so each output channel can be connected to another hub.
The isolation site of the I-7513 is located in the input and output interface circuit. In other words, the I-7513 is a three-way isolation module.
Specifications
Isolation
Three-way Isolation: 3000 VDC
EMS Protection
ESD (IEC 61000-4-2): Yes
LED Indicators:
Status: 1 x Power and Communication
COM Ports
Ports: 1 x RS-485 Input (Master)
3 x RS-485 Output (Slave)
Baud Rate: 300 ~ 115200 bps
Power
Input Range: +10 VDC ~ +30 VDC (Non-isolated)
Consumption: 2.16 W
Mechanical
Casing: Plastic
Dimensions (mm): 72 x 35 x 122 (W x L x H)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +75 °C
Humidity: 10 ~ 90% RH, Non-condensing
