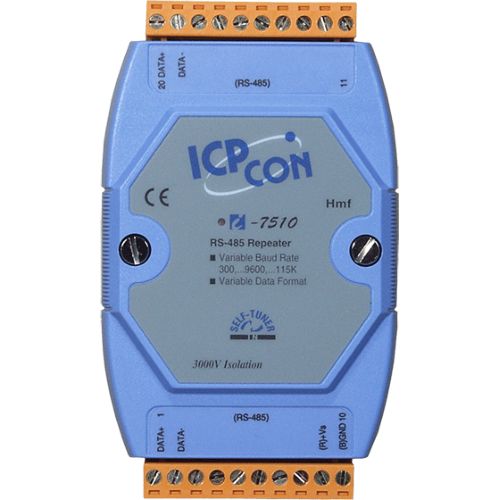

I-7510 CR ICP DAS Repeaters


I-7510 CR

Isolated RS-485 High Speed Repeater. Extends RS-485 signal beyond 4000 feet. Also Works as RS-422 to RS-485 Signal Converter. Supports operating temperatures between -25 to 75°C



€ 94,05

(VAT excluded)

€ 114,74(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 114,74

Availability: 15 business days

SKU: 3487

Model: I-7510 CR

Need Help?

  • Auto Switching Baud Rate, 300 ~ 115200 bps
  • ESD Protection for RS-485 Data Line
  • 2-way 3000 VDC Isolation Protection for I-7510/I-7510A
  • 3-way 3000 VDC Isolation Protection for I-7510AR
  • Transmission Speed of up to 115200 bps
  • Power Input of +10 ~ +30 VDC
  • Supports Operating Temperatures from -25 °C ~ +75 °C
  • DIN-Rail

The I-7510/I-7510A provides 2-way optical isolation between one piece of RS-422/RS-485 equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network. Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a four-wire RS-422 signal into a 2-wire RS-485 signal, and vice versa.
The I-7510AR is exactly the same as the I-7510A, except for the isolation site. The isolation site of the I-7510A is located in the input interface circuit, but the isolation site of the I-7510AR is located in the input and output interface circuit. In other words the I-7510AR is 3-way isolation repeater module.


Serial Interface: RS-485: Data+, Data-
2-wire cabling/4-wire cabling: Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change
Transfer Distance: Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
Max. Devices Supported: 256
Self-Tuner Asic Inside: Yes
Speed: 300 ~ 115200 bps
ESD Protection: Yes
3000 VDC Isolated Voltage: 2-way Isolated
Connection: Removable 10-Pin Terminal Block x 2

Led Indicators

Power/Communication: Yes


Input Voltage Range: +10 VDC ~ +30 VDC (Non-isolated)
Power Consumption: 2.16 W


Casing: Plastic
Flammability: Fire Retardant Materials (UL94-V0 Level)
Dimensions (W x H x D): 72 mm x 122 mm x 35 mm
Installation: DIN-Rail


Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +75 °C
Humidity: 10 ~ 90% RH, non-condensing
