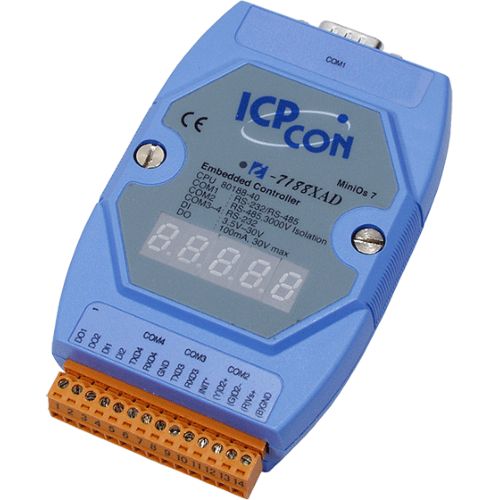

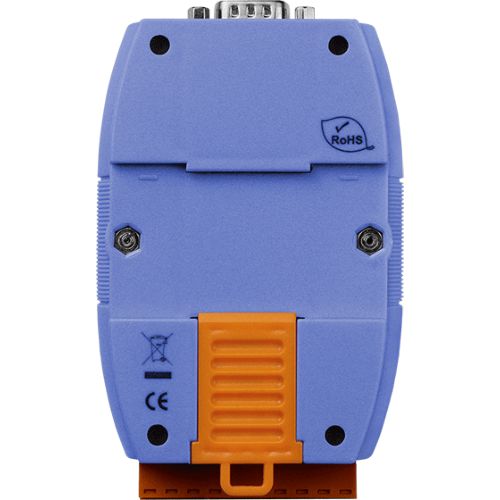

I-7188XAD CR ICP DAS MiniOS7 Based

I-7188XAD CR ICP DAS

I-7188XAD CR

Expandable Embedded Data Acquisition Controller, Programmable in C Language with 40 Mhz CPU. MiniOS7 Operating System. Supports operating temperatures between -25 to 75°C.

Quantity:

Price

€ 285,90

(VAT excluded)

€ 348,80(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 348,80

Availability: 15 business days

SKU: 3321

Model: I-7188XAD CR

Need Help?


The I-7188XA(D) is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188XA controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price. The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188XA controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product. Depending on the type of embedded firmware programs that are being developed, and which I/O Expansion Board, the I-7188XA(D) can be used as a single versatile controller. The I-7188XA supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, AsicKey & other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. The integrated modular design of the expansion board allows a fast, easy, and flexible way of upgrading our controller's capability.

CPU

CPU: 80188 (40MHz)
SRAM: 512K Bytes
Flash: 512K Bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles.
EEPROM: 2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1,000,000 erase/write cycles
NVRAM: 31 Bytes (battery backup, data valid up to 10 year)
RTC (real time clock): Seconds, minutes, hours, date of the month;month, year, valid up from 1980 to 2079
64-bit Hardware Serial Number: Yes
Build-in Watchdog Timer: Yes

Communication Interface

COM1: RS-232 or RS-485 ( jumper select(JP6), default is RS-232)
RS-232 (TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND)
RS-485 (D1+, D1-, self-tuner ASIC inside): 16 bytes FIFO
COM2: RS-485 (D2+, D2-, self-tuner ASIC inside), 16 bytes FIFO, Isolation voltage: 3000V
COM3: RS-232 (TXD3, RXD3, GND),1 byte FIFO
COM4: RS-232 (TXD4, RXD4, GND); Program download port; Can be used as general purpose RS-232 port,1 byte FIFO

Communication speed

All ports: 115.2K bps max

Digital Input/Output

Digital Input:
Channels: 2
Contact: Dry
On voltage level: Connect to GND
Off voltage level: Open
Digital Output:
Channels: 2
Output type: Open-collector
Output current: 100mA
Max load voltage: +30VDC

LED Display

5 Digits Seven Segment Display: Yes (for 7188XAD)
Red LED: Yes

I/O expansion bus

I-7188XA: Yes
I-7188XAD: Yes

Dimensions

I-7188XA: 119mm x 72mm x 33mm
I-7188XAD: 119mm x 72mm x 33mm

Operating Environment

Operating Temperature: -25°C ~ +75°C
Storage Temperature: -30°C ~ +80°C
Humidity: 10% ~ 90% RH, non-condensing

Power

Protection: Power reverse polarity protection
Power requirement: 10 to 30VDC
Power consumption:
                I-7188XA: 2.0W
                I-7188XAD: 3.0W
