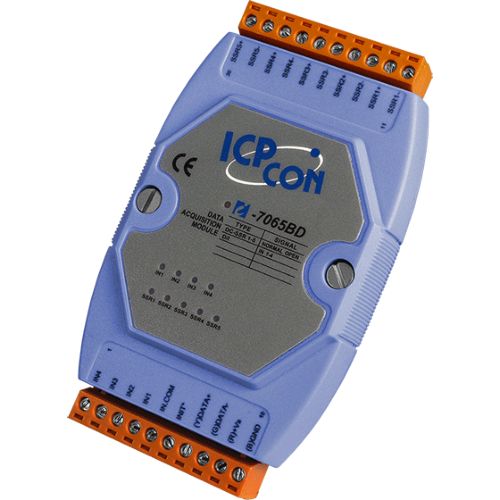

I-7065B CR
4-ch Isolated (Wet, 4~30 VDC) Digital input and 5-ch DC-SSR Output Module
Digital Input
Channels: 4
Input Type: Sink, Source, isolated channels with common ground or power
Off Voltage Level: +1V max.
On Voltage Level: +4 ~ +30V
Input Impedance: 3KOhms, 0.5W
Counters:
Channels: 4
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100Hz
Min. Pulse Width: 5ms
SSR DC Output
Channels: 2
Relay Type: Form "A relay SPST (N.O.)
Contact Rating:
DC: 3 ~ 30 VDC @1.0 Arms
Max. Load current: 1.0 Arms
Min. Load current: 10 mArms
Max. Off-State Leakage Current: 0.1 mA(at 30 VDC)
Max. On-State Voltage Drop: 1.2 VDC
Operating Time(Max.): 1 ms
Release Time(Min.): 1 ms
1 Cycle Surge Current: 3 A (10 ms)
Surge Strength: 4,000 VAC
InsulationResistance: 1000 MOhms min. at 500 VDC
Life Time long life, maintence free
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/Communication indicator
4 LEDs as Digital Input indicators and 5 LEDs as Relay Output indicators (for I-7065BD)
Power
Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 0.6 W (max.)(I-7065B)/1.4 W (max.)(I-7065BD)
Environment
Operating Temperature: -25 ~ 75XC
Storage Temperature: -40 ~ 85XC
Humidity: 5 ~ 95%, non-condensing
