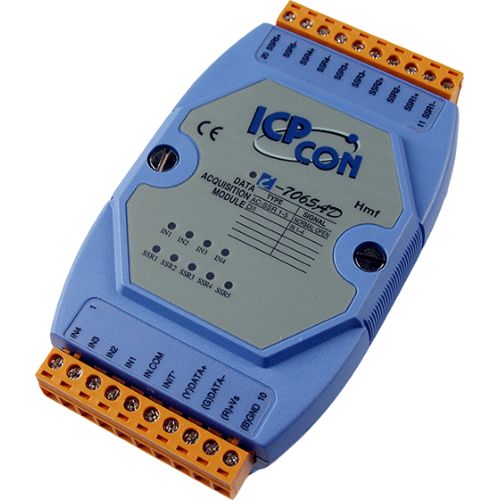

I-7065AD CR
4-ch Isolated (Wet, 4~30 VDC) Digital input and 5-ch AC-SSR Output Module with LED Display
Digital Input
Channels: 4
Input Type: Sink, Source, isolated channels with common ground or power
Off Voltage Level: +1V max.
On Voltage Level: +4 to +30V
Input Impedance: 3K Ohms, 0.5W
Counters:
Channels: 4
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100Hz
Min. Pulse Width: 5ms
Photo-Isolation: 3750Vrms
SSR AC Output
Channels: 5
Relay Type: Form "A” relay SPST (N.O.)
Contact Rating: AC:24~ 265Vrms @1.0Arms
Max. Load current: 1.0Arms
Min. Load current: 10mArms
Max. Off-State Leakage Current: 0.75mA(at 100Vrms 60Hz)
1.50mA(at 200Vrms 60Hz)
Max. On-State Voltage Drop: 1.2Vrms
Operating Time(Max.): 1ms
Release Time(Min.): 1ms+1/2rms
1 Cycle Surge Current: 50A(60Hz)
Surge Strength: 4,000VAC
Insulation Resistance: 1000MOhms min. at 500VDC
Life Time long life, maintence free
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
4 LEDs as Digital Input indicators and 5 LEDs as Relay Output indicators (for I-7065AD)
Power
Input Voltage Range: 10~30VDC
Power Consumption: 0.8W (max.)(I-7065A) / 1.6W (max.)(I-7065AD)
Environment
Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95%, non-condensing
