features and benefits
The I-7058/I-7059 module offers 8 differential channels for AC/DC Digital Input, each of which features channel-to-channel photocouplerisolation.
All DI channels are also able to be used as 16-bit counters.

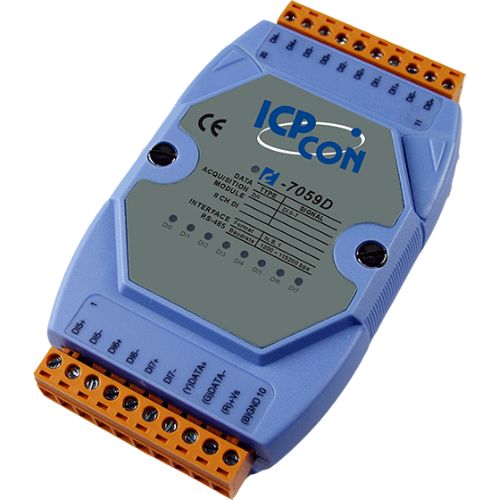

The I-7058D/I-7059D module has 8 LED indicators fthat can be used to monitor the status of the DI channels.
ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard.
M-7058D/M-7059D module has the same hardware specifications as the I-7058/I-7059 module, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
- Supports AC/DC Digital Input
- 8 Differential Digital Inputs
- All Channels Can be Used as 16-bit Counters
- Channel-to-Channel Isolation
- Built-in Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Display| Type | I/O LED Indicator |
|---|
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
LED Indicators| Status | 1 x Power and Communication | 8 x Digital Input |
|---|
Digital Input/Counter| Channels | 8 |
|---|
| Type | Wet Contact |
|---|
| Sink/Source (NPN/PNP) | Sink/Source |
|---|
| ON Voltage Level | 10 ~ 80 VAC | ±15 ~ ±80 VDC |
|---|
| OFF Voltage Level | 3 VAC Max. | ±3 VDC Max. |
|---|
| Max. Counts | 65535 (16-bit) |
|---|
| Frequency | 100 Hz |
|---|
| Min. Pulse Width | 5 ms |
|---|
| Input Impedance | 10 kΩ |
|---|
| Overvoltage Protection | 100 VAC/VDC Max. |
|---|
| Channel-to-Channel Isolation | ±2 kV |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
|---|
| Protocol | DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 0.3 W |
|---|
Mechanical| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
