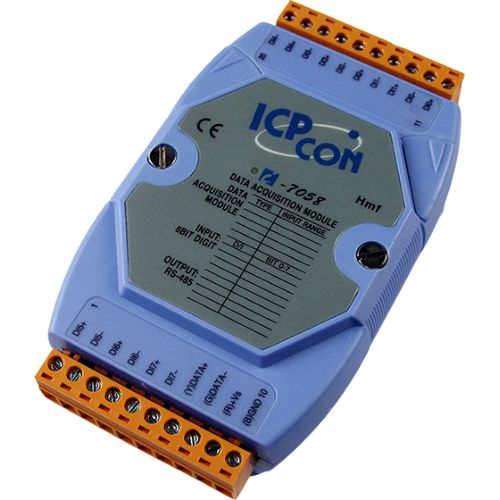

I-7058 CR, 8-ch Isolated (Wet, 80~250 VAC/±100 ~ ±250 VDC) Digital input Module
I-7058 CR
8-ch Isolated (Wet, 80~250 VAC/±100 ~ ±250 VDC) Digital input Module
Free Shipping
Digital Input
Channels: 8
Input Type: AC, Differential, isolated
Off Voltage Level: 30VAC max.
On Voltage Level: 80 ~ 250VAC
AC Frequency: 50~60Hz ( > 45Hz Min.)
Input Impedance: 68K Ohm, 1W
Counters:
Channels: 8
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100Hz
Min. Pulse Width: 5ms
Photo-Isolation: 5000Vrms
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
8 LEDs as Digital Input indicators (for I-7058D)
Power
Input Voltage Range: 10~30VDC
Power Consumption: 0.3W (I-7058) / 1.0W (I-7058D)
Environment
Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
