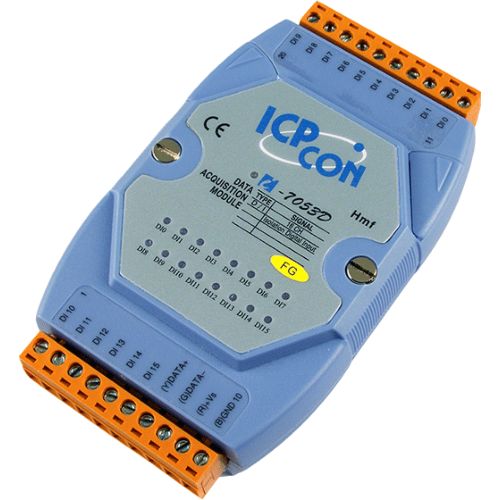

I-7053D_FG CR ICP DAS Digital IO Modules

• 16 Digital Inputs for Source Type
• Long Distance Measurement
• Can Be Used As Counters
• Dry Contact
• Long distance measurement
• Non-isolated
• Dual Watchdog
• RoHS Compliance
• Wide Range of Operating Temperature: -25 ~ +75 °C

I-7053_FG features long distance measurement for digital input. Its effective distance for dry contact is up to 500 meters. I-7053_FG supports source type input. All of its 16 channels are also able to be used as 16-bit counters, each of which features non-isolated. I-7053D_FG has 16 LED indicators for channel status.

Digital Input

Channels: 16
Input Type: Dry Contact, Source
Off Level: Close to GND
On Level: Open
Effective Distance: 500 M Max.
Counters:
      Channels: 16
      Max. Counts: 16-bit (65535)
      Max. Input Frequency: 100 Hz
      Min. Pulse Width: 5 ms

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/Communication indicator
16 LEDs as digital input indicators (for I-7051D)

Power

Input: 10 ~ 30 VDC
Power Consumption:
      I-7053_FG: 0.2 W
      I-7053D_FG: 1.2 W

Environment

Operating Temperature: -25 ~ 75°C
Storage Temperature: -40 ~ 85°C
Humidity: 5 ~ 95% RH, non-condensing

Dimensions

72 mm x 121 mm x 35 mm (W x L x H)
