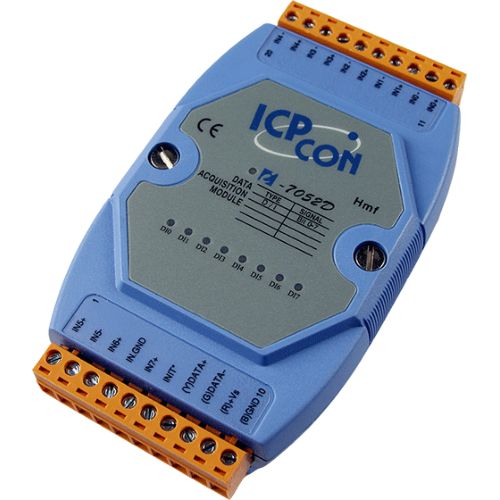

I-7052D CR ICP DAS Digital IO Modules

Digital Input

Channels: 8
Input Type: Sink, Source, 6 fully independent channels and 2 common ground channels
Off Voltage Level: +1V max.
On Voltage Level: +4V to +30V
Input Impedance: 3K Ohms, 0.3W
Counters:
       Channels: 8
       Max. Counts: 16-bit (65535)
       Max. Input Frequency: 100Hz
       Min. Pulse Width: 5ms
Photo-Isolation: 5000Vrms

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
8 LEDs as Digital Input indicators (for I-7052D)

Power

Input: 10~30VDC
Power Consumption: 0.4W (I-7052) / 0.7W (I-7052D)

Environment

Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
