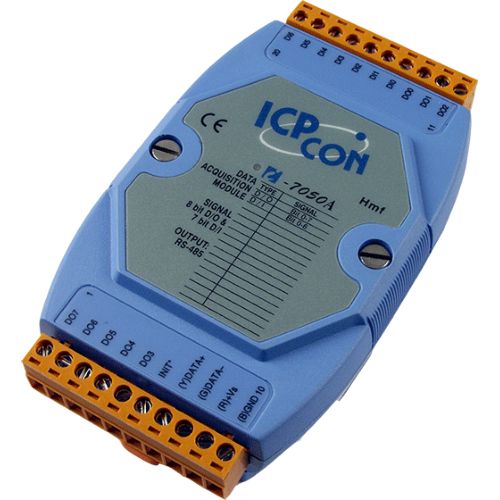

I-7050A CR
7-ch Non-isolated (Wet) Digital input and 8-ch Non-isolated (Source, PNP) Digital output Module using DCON Protocol (Blue Cover)
- 8 Digital Outputs and 7 Digital Inputs
- Open Collector Output
- Non-isolated for all Channels
- Digital Input Channels Can Be Used As 16-bit Counters
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Cost-effective
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
The I-7050 offers 7 channels for digital input and 8 channels for digital output, each of which are non-isolated. The I-7050 supports sink-type output using an NPN open collector and source-type input. All input channels are able to be used as 16-bit counters. There are options to enable both poweron and safe values. The I-7050D has 15 LED indicators for channel status
monitoring. The hardware speciÞ cations for the M-7050 are the same as the I-7050 and both support the Modbus RTU and DCON protocols which can be configured via software.
Communication
Interfac: RS-485
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rat: 1200 ~ 115200 bps
Protocol: DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicator/Display
System LED Indicator Yes, 1 LED as Power/Communication Indicator
Power
Reverse Polarity Protection: Yes
Input Range: 10 ~ 30 VDC
Consumption: 0.4 W - 0.5 W (A)
Mechanical
Dimensions (W x L x H): 72 mm x 123 mm x 35 mm
Installation: DIN-Rail or Wall Mounting
Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85°C
Humidity: 10 ~ 95% RH, Non-condensing
Digital Input/Counter
Channels: 7
Contact: Dry
Sink/Source (NPN/PNP): Source Sink
Wet Contact:
On Voltage Level: +4 ~ 30 VDC
Off Voltage Level: +1 VDC Max.
Counters:
Max. Count: 65535 (16-bit)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Input Impedance: 100 KOhm
Digital Output
Channels: 8
Type: Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +3.5 ~ 30 VDC
Max. Load Current: 30 mA/Channel
Power-on Value: Yes
Safe Value: Yes
