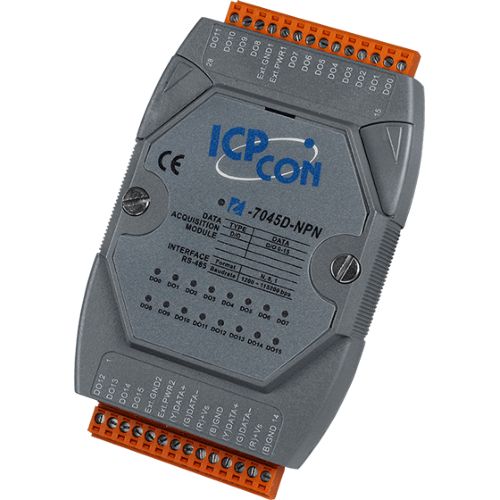

I-7045D-NPN CR
16-ch Isolated (Sink, NPN, 3.5~50 VDC) Digital output Module with LED Display using DCON Protocol (Gray Cover)
- Digital Outputs for Sink Type
- 4 kV ESD and EFT Protection
- 3 kV Surge Protection for Power Input
- Dual Watchdog
- Power On Value Setting
- Safe Value Setting
- Short Circuit Protection
- 3750 VDC Intra-Module Isolation
- A Wide Range of Operating Temperature: -25 °C~ 75 °C
- RoHS Compliance
I-7045-NPN offers 16 channels for digital output, each of which features Photo-couple isolation. I-7045-NPN supports sink type output with short-circuits protection. There are options for power on value and safe value for your consideration. I-7045D-NPN has 16 LED indicators for DO channel status. 4 kV ESD protection, 4 kV EFT protection, 3 kV Surge Protection for Power Input and 3750 VDC intra-module isolation are standard.
Digital Output
Channels: 16, Sink(NPN)
Output Voltage: +3.5 ~ +50 V
Output Current: 700 mA per channel, Direct drive power relay module
Intra-module Isolation, Field to Logic: 3750 VDC
EFT Protection: ±4 kV to Power
ESD Protection (IEC 61000-4-2):
±4 kV Contact for each terminal,
±8 kV Air for random point
Surge Protection: ±3 kV for Power Input.
Overvoltage Protection: 60 VDC
Overload Protection: Yes
Short-circuit and Overcurrent Protection 1.4 A
Thermal Overload trip temperature: 150°C
Intra-module Isolation, Field to Logic: 3750 Vrms
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
16 LEDs as Digital Output indicators (for I-7045D-NPN)
Power
Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 0.4 W (I-7045-NPN)/1.2 W(I-7045D-NPN)
Environment
Operating Temperature: -25 ~ 75°C
Storage Temperature: -40 ~ 85°C
Humidity: 5 ~ 95% RH, non-condensing
