features and benefits

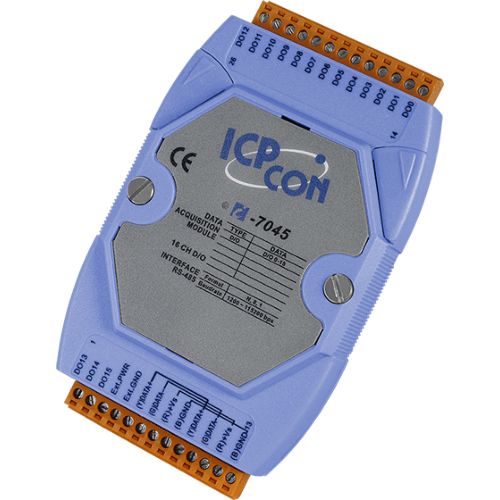

All modules in the 7045 series offer 16 digital output channels, each of which features photocoupler isolation.
The I-7045(D)/M-7045(D) supports sourcetype output, while the I-7045(D)-NPN/M-7045(D)-NPN supports sink-type, and both are equipped with short circuit protection.
There are options to enable both power-on and safe values, and 16 LED indicators that can be used to monitor the status of the digital output channels.
4 kV ESD protection, 4 kV EFT protection, 3 kV surge protection for power input and 3750 VDC Intra-module isolation are standard.
The M-7045(D)/M-7075(D)-NPN has the same hardware specifications as the I-7045(D)/I-7045(D)-NPN, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
- Source-type Digital Output with Overload Protection
- Configurable Power-on Value and Safe Value Settings
- Short Circuit Protection
- Overload and Overvoltage Protection
- Built-in Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3750 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for the 16 DO channels and Power, | ±2 kV for the RS-485 Port |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Digital Output| Channels | 16 |
|---|
| Type | Open Source |
|---|
| Sink/Source (NPN/PNP) | Source |
|---|
| Load Voltage | +10 ~ +40 VDC |
|---|
| Load Current | 650 mA/channel |
|---|
| Overvoltage Protection | 47 VDC |
|---|
| Overload Protection | 1.4 A |
|---|
| Short-circuit Protection | Yes |
|---|
| Power on Value | Programmable |
|---|
| Safe Value | Programmable |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1) |
|---|
| Protocol | DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 0.6 W |
|---|
Mechanical| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
