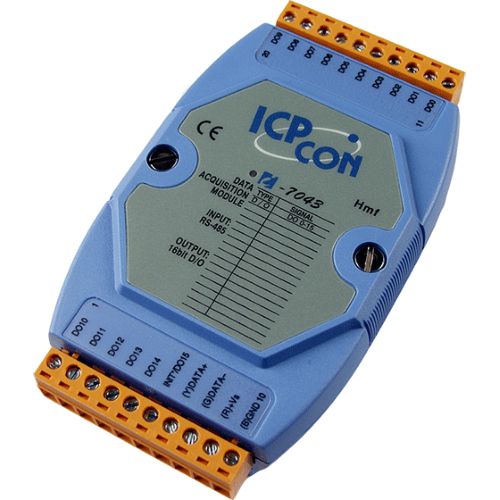

I-7043 CR ICP DAS Digital IO Modules

I-7043 CR ICP DAS

I-7043 CR

16-ch Non-isolated (Sink, NPN, 10~30 VDC) Digital output Module

Quantity:

Price

€ 109,85

(VAT excluded)

€ 134,02(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 134,02

Availability: 15 business days

SKU: 3535

Model: I-7043 CR

Need Help?


Digital Output

Channels: 16, Sink, NPN
Output Voltage: 30V max.
Output Current: 100mA per channel, Direct drive power relay module

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
16 LEDs as Digital Output indicators (for I-7043D)

Power

Input Voltage Range: 10~30VDC
Power Consumption: 0.4W (I-7043) / 1.1W (I-7043D)

Environment

Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
