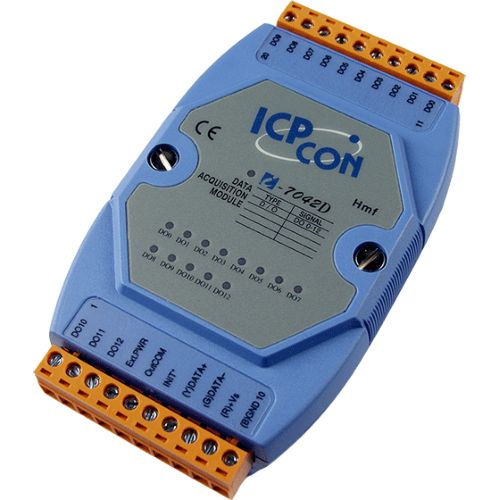

I-7042D CR, 13-ch Isolated (Sink, NPN, 3.5~30 VDC) Digital output Module with LED Display
I-7042D CR
13-ch Isolated (Sink, NPN, 3.5~30 VDC) Digital output Module with LED Display
Free Shipping
Digital Output
Channels: 13, Sink, NPN
Output Voltage: 30V max.
Output Current: 100mA per channel, Direct drive power relay module
Isolation Voltage: 3750V
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
13 LEDs as Digital Output indicators (for I-7042DD)
Power
Input Voltage Range: 10~30VDC
Power Consumption: 1.0W (I-7042) / 1.7W (I-7042D)
Environment
Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
