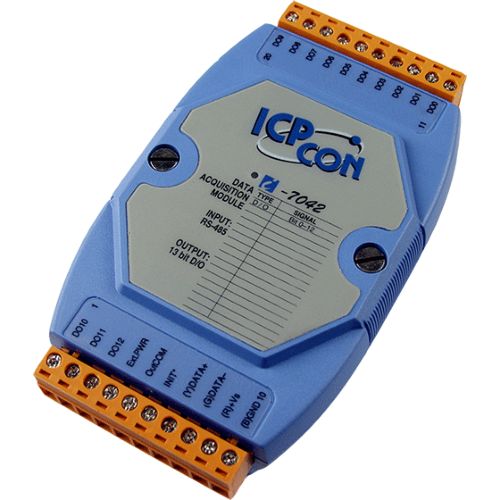

I-7042 CR ICP DAS Digital IO Modules

I-7042 CR ICP DAS

I-7042 CR

13-ch Isolated (Sink, NPN, 3.5~30 VDC) Digital output Module

Quantity:

Price

€ 109,85

(VAT excluded)

€ 134,02(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 134,02

Availability: 15 business days

SKU: 3533

Model: I-7042 CR

Need Help?


Digital Output

Channels: 13, Sink, NPN
Output Voltage: 30V max.
Output Current: 100mA per channel, Direct drive power relay module
Isolation Voltage: 3750V

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
13 LEDs as Digital Output indicators (for I-7042DD)

Power

Input Voltage Range: 10~30VDC
Power Consumption: 1.0W (I-7042) / 1.7W (I-7042D)

Environment

Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
