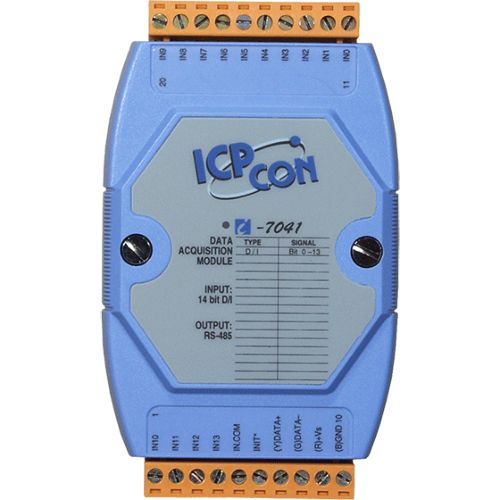

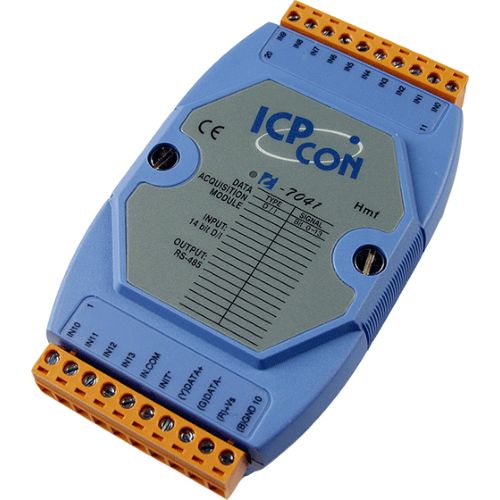

I-7041 CR ICP DAS Digital IO Modules

Digital Input

Input Channels: 14
Input Type: Sink or Source,Isolated channel with common power or ground
Off Voltage Level: +1V Max
On Voltage Level: +4 ~ +30V
Input Impedance: 3K Ohms, 0.5W
Counters:
    Channels: 14
    Max. Counts: 16-bit (65535)
    Max. Input Frequency: 100Hz
    Min. Pulse Width: 5ms
Isolation Voltage: 3750Vrms

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
14 LEDs as Digital Input indicators (for I-7041D)

Power

Input Voltage Range: 10 ~ 30VDC
Power Consumption: 0.2W (I-7041) / 0.9 W (I-7041D)

Environment

Operating Temperature: -25 to 75°C
Storage Temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
