I-7024R-G CR ICP DAS Digital IO Modules

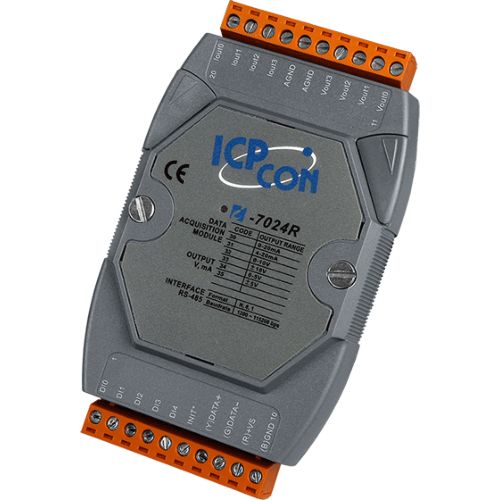

I-7024R-G CR

4-ch 14-bit Analog output Module with 5-ch Digital input using DCON Protocol (Gray Cover)

Free Shipping

I-7024R-G CR datasheet

Print Product Sheet

Need Help?

Write us
an email

Call us
051 6604005

Technical Information

4-channel Analog Output
5-channel Digital Input for I-7024R/M-7024R
Software Selectable Current or Voltage Output
14-bit Resolution
Power-on Value Setting
Safe Value Setting
3000 VDC Intra-Module Isolation
Programmable Output Slope
Dual Watchdog
Wide Operating Temperature Range: -25 ~ +75°C

The I-7024 is a 14-bit 4-channel analog output module that provides current and voltage outputs. There are options for power-on values and safe values. It features 3000 VDC intra-module isolation.
The I-7024R is the same as the I-7024 and provides additional 5-channel digital inputs and 4 KV ESD protection on each terminal.
The M-7024/M-7024R support Modbus RTU and DCON protocols and can be configured via software. Their hardware specifi cations are the same as those of the I-7024 / I-7024R.

Analog Output

Output Channels: 4
Range: 0 ~ 5 V, +/- 5 V, 0 ~ 10 V, +/- 10 V, 0 ~ 20 mA, 4 ~ 20 mA
Resolution: 14-bit
Accuracy: 0.1%
DA Output Response Time: 10 ms
Power-on Value: Yes
Safe Value: Yes

Digital Input

Channels: 5
Input Type: Dry Contact (Source)
Contact Level:
     On Voltage Level: Close to GND
     Off Voltage Level: Open
Counters:
   Max. Count: 16-bit (65535)
     Max. Input Frequency: 50 Hz
     Min. Pulse Width: 10 ms

Communication

Interface: RS-485
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Accuracy: DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicator/Display

System LED Indicator: Yes, 1 LED as Power/Communication Indicator

Isolation

Intra-Module Isolation, Field-to-Logic: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): +/-4 kV
EFT (IEC 61000-4-4): +/-4 kV
RS (IEC 61000-4-3): 5 V/m, 80 MHz ~ 1GHz

Power

Reverse Polarity Protection: Yes
Input Range: 10 ~ 30 VDC
Consumption: 3.2 W

Mechanical

Dimensions (W x L x H): 72 mm x 123 mm x 35 mm
Installation: DIN-Rail or Wall Mounting

Environment

Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85°C
Humidity: 10 ~ 95% RH, Non-condensing
