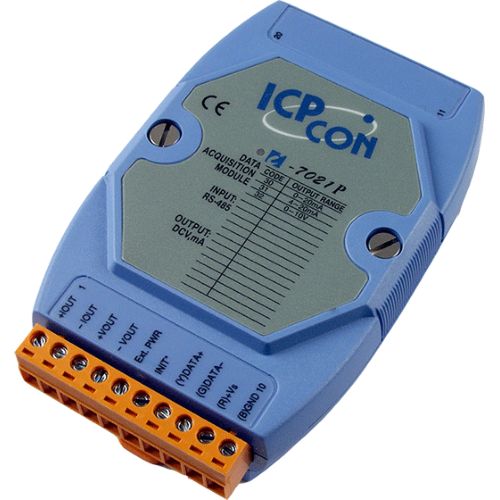

I-7021P CR, 1-ch 16-bit Analog output Module
I-7021P CR
1-ch 16-bit Analog output Module
Free Shipping
Analog Output
Output Channels: 1
Output Type: 0~20mA , 4~20mA and 0~10V
Resolution: 16-bit
Accuracy: +/-0.02% of FSR
Read Back Accuracy: +/-1% of FSR
Zero Drift:
Current output: +/-0.2uA/°C
Voltage output: +/-10uV/°C
DA Output Response Time: 10ms per channel
Span Temperature Coefficient: +/-5ppm/ °C
Programmable Output Slope:
0.125 to 1024 mA/ second
0.0625 to 512 V/ second
Current load resistance:
Internal power: 500ohms
External 24V: 1050ohms
Photo-Isolation: 3750Vrms
Intra-module Isolation, Field to Logic: 3000VDC
Output Type: 0~20mA , 4~20mA and 0~10V
Resolution: 16-bit
Accuracy: +/-0.02% of FSR
Read Back Accuracy: +/-1% of FSR
Zero Drift:
Current output: +/-0.2uA/°C
Voltage output: +/-10uV/°C
DA Output Response Time: 10ms per channel
Span Temperature Coefficient: +/-5ppm/ °C
Programmable Output Slope:
0.125 to 1024 mA/ second
0.0625 to 512 V/ second
Current load resistance:
Internal power: 500ohms
External 24V: 1050ohms
Photo-Isolation: 3750Vrms
Intra-module Isolation, Field to Logic: 3000VDC
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
Power
Input: +10 to +30 Vdc
Power Consumption: 1.8W
Environment
Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
