I-7018Z-G/S2 CR ICP DAS Thermocouple IO Modules

I-7018Z-G/S2 CR ICP DAS

I-7018Z-G/S2 CR

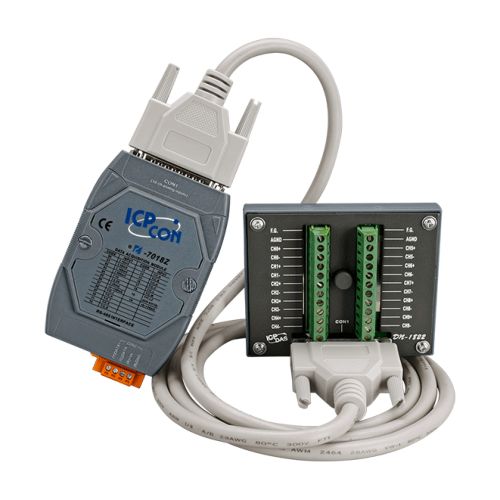

10-ch Thermocouple Input Module using DCON Protocol (Gray Cover) (RoHS) Includes DN-1822 Daughter Board, CA-252518D-1 1.8 m Cable and Plastic DIN Rail (4PAPP-006-G)

Quantity:

Price

€ 292,67

(VAT excluded)

€ 357,06(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 357,06

Availability: 15 business days

SKU: 4601

Model: I-7018Z-G/S2 CR

Need Help?


features and benefits

The I-7018Z/M-7018Z is a 10-channel universal Analog Input module with an RS-485 interface that is especially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field.
The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design.
Besides the thermocouple inputs, the I-7018Z/M-7018Z also supports voltage and current input.
The voltage input range can be from +/-15 mV to +/-2.5 V.
Up to 10 different types of Analog Input can be connected to a single module.
Overvoltage protection of up to 240 Vrms is provided.
The module also features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input channels.
The M-7018Z provides additional support for both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7018Z.

  • 10 Analog Inputs
  • Provides Stable and Consistent Temperature Output
  • Current, Voltage, and Thermocouple Inputs
  • High Over-voltage Input Protection
  • High Common Voltage Protection
  • Individual Channel Configuration
  • Open Thermocouple Detection
  • Built-in Dual Watchdog

specifications

CPU Module
Watchdog TimerModule, Communication (Programmable)
Isolation
Intra-module Isolation3000 VDC
EMS Protection
EFT (IEC 61000-4-4)±4 kV for Power Line
ESD (IEC 61000-4-2)±4 kV Contact for Each Terminal
Surge (IEC 61000-4-5)±0.5 kV for Power Line
LED Indicators
Status1 x Power and Communication
Analog Input
Channels10 Differential
TypeVoltageCurrentThermocouple
Sensor TypeThermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Stable and Consistent Temperature OutputYes
RangeVoltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 VCurrent: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor)
Resolution16-bit
Accuracy±0.1% of FSR
Sampling Rate10 Hz (Total)
Input Impedance> 400 kΩ
Common Voltage Protection±200 VDC
Overvoltage Protection240 Vrms
Individual Channel ConfigurationYes
Open Wire DetectionFor Thermocouple (Software Selectable, *Note1) and 4 ~ 20 mA
COM Ports
Ports1 x RS-485
Baud Rate1200 ~ 115200 bps
Data Format(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
ProtocolDCON
Power
Reverse Polarity ProtectionYes
Input Range+10 ~ +30 VDC
Consumption1.0 W
Mechanical
Dimensions (mm)I-7018Z: 73 x 116 x 35 (W x L x H)DN-1822: 103 x 96 x 27 (W x L x D)
InstallationDIN-Rail Mounting
Environment
Operating Temperature-25 ~ +75 °C
Storage Temperature-40 ~ +85 °C
Humidity10 ~ 95% RH, Non-condensing
