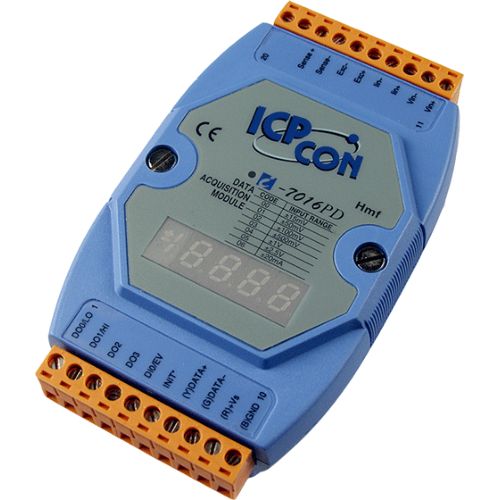

I-7016PD CR ICP DAS Digital IO Modules

Analog Input

Input Channels: 1
Input Type: +/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V, +/- 20mA
Resolution: 16-bit
Sampling Rate: 10 Samples/ Second
Accuracy: +/-0.05% FSR
Band Width: 5.24Hz
Zero Drift: +/-0.5μV/ °C
Span Drift: 25ppm/°C
Common Mode Rejection: 150dB
Normal Mode Rejection: 100dB
Overvoltage Protection: 10V (P-P)
Input Impedance: 20M Ohms
Intra-module Isolation, Field to Logic: 3000 Vrms

Excitation Voltage Output

Output Channels: 1
Output Range: 0 to +10V
Resolution: 16-bit
Max OUtput Load: 40 mA
Accuracy: +/-0.05% of FSR
Drift: +/-50 ppm/ °C
Output Impedance: 12 Ohms
Voltage feedback: Yes
Isolation: 3000 Vdc

Digital Input

Channels: 1
Logic Level 0: +1V max
Logic Level 1: +3.5V to 30V
Max Input Frequency: 50 Hz
Min. Pulse Width: 1 mS

Digital Output

Channels: 4
Output Type: Sink, Open collector to 30V
Output Load: 30 mA max. per channel
Power dissipation: 300 mW

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
4 1/2 digits (for I-7016PD)

Power

Input Voltage Range: +10 to +30 Vdc
Power Consumption: 2.4W (I-7016P) / 3.0W (I-7016PD)

Environment

Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Humidit: 5 to 95% RH, non-condensing
