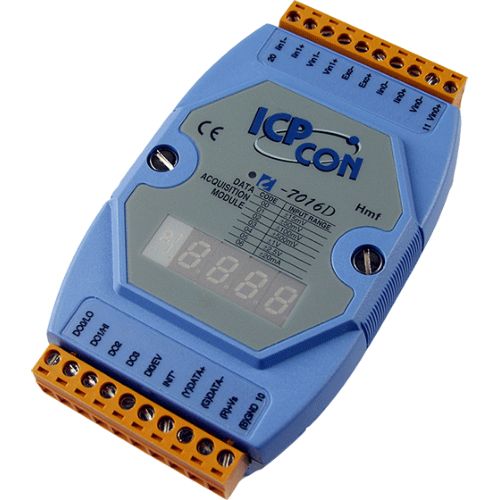

I-7016D CR ICP DAS Digital IO Modules

I-7016D CR ICP DAS

I-7016D CR

2-ch 4-wire Strain Gauge Input Module with LED Display

Quantity:

Price

€ 297,93

(VAT excluded)

€ 363,47(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 363,47

Availability: 15 business days

SKU: 3507

Model: I-7016D CR

Need Help?


Analog Input

Input Channels: 2
Input Type: +/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V, +/- 20mA
Resolution: 16-bit
Sampling Rate:
         10 Samples/ Second (one-channel mode)
          2 Samples/ Second (two-channel mode
Accuracy: +/-0.05% FSR
Band Width: 5.24Hz
Zero Drift: +/-0.5uV/ °C
Span Drift: 25ppm/°C
Common Mode Rejection: 150dB
Normal Mode Rejection: 100dB
Overvoltage Protection: 10V (P-P)
Input Impedance: 20M Ohms
Intra-module Isolation, Field to Logic: 3000 VDC

Excitation Voltage Output

Output Channels: 1
Output Range: 0 to +10V
Max Output Load: 40mA
Accuracy: +/-0.05% of FSR
Drift: +/-50ppm/ °C
Output Impedance: 12 Ohms
Isolation: 3000 VDC

Digital Input

Channels: 1
Logic Level 0: + 1V max
Logic Level 1: + 3.5V to 30V
Max Input Frequency: 50Hz
Min. Pulse Width: 1 mS

Digital Output

Channels: 4
Output Type: Sink, Open collector to 30V
Output Load: 30mA max per channel
Power dissipation: 300 mW

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200 bps

LED Display

1 LED as Power/ Communication indicator
4 1/2 digits (for I-7016D)

Power

Input Voltage Range: +10 to +30Vdc
Power Consumption: 2.4W (I-7016) / 3.0W (I-7016D)

Environment

Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
