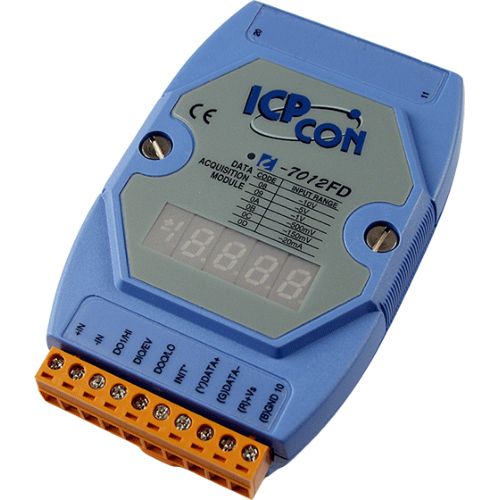

I-7012FD CR ICP DAS Analog IO Modules

Analog Input

Input Channels: 1
Input Type:
          +/-150mV, +/-500mV, +/-1V, +/-5V, +/-10V
          +/-20mA (requires optional external 125ohm resistor)
Resolution: 12-bit (Fast Mode) / 16-bit (Normal Mode)
Sampling Rate: 100Samples/Second (Fast Mode) / 10Samples/ Second (Normal Mode)
Accuracy: +/-0.25% or better
Zero Drift: +/- 20uV/°C
Span Drift: 25ppm/°C
Band Width: 5.24Hz
Common Mode Rejection: 86dB
Normal Mode Rejection: 100dB
Photo-Isolation: 3750 Vrms
Intra-module Isolation, Field to Logic: 3000 VDC

Digital Input

Channels: 1
Logic Level 0: + 1V max
Logic Level 1: + 3.5V to 30V
Max Input Frequency: 50Hz
Min. Pulse Width: 1 mS

Digital Output

Channels: 2
Output Type: Sink, Open Collector to 30V
Output Load: 30mA max per channel
Power dissipation: 300 mW

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
4 1/2 digits (for I-7012FD)

Power

Input: +10 to +30 Vdc
Power Consumption: 1.3 W (I-7012F) / 1.9 W(I-7012FD)

Environment

Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
