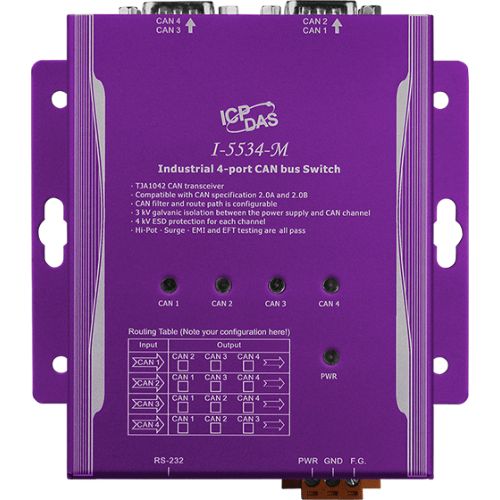

I-5534-M CR ICP DAS CAN Switch


I-5534-M CR

Industrial 4-port CAN bus Switch (Metal Case)



€ 349,10

(VAT excluded)

€ 425,90(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 425,90

Availability: 15 business days

SKU: 118763

Model: I-5534-M CR

Need Help?

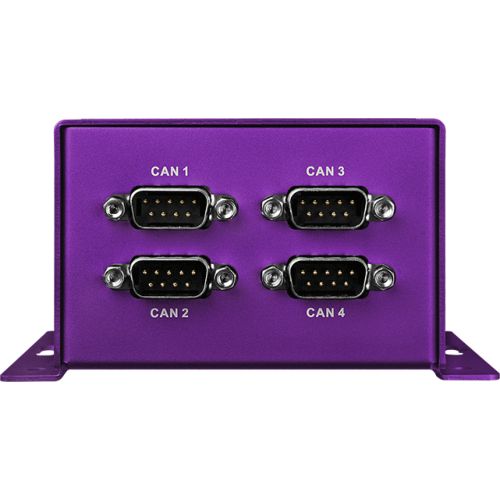

  • 4 CAN communication ports
  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • CAN bus filter is configurable
  • 100 data frames buffer for each CAN channel
  • Max data flow up to 2500 fps for all CAN channel
  • Selectable baud rate by rotary switch
  • Selectable 120Ω terminal resistor by DIP switch
  • LED for CAN reception and transmission
  • Support CAN network with star or tree topology
  • Extending the CAN bus distance to expand the CAN network size
  • Integrating different CAN network with different baud rate
  • I-5534-M is casing with Aluminum metallic case
  • Utility tool for CAN filter, route path, user-defined baud rate and CAN-ID mapping configuration
  • Max. CAN-ID mapping data up to 32 for each CAN channel


The I-5534-M is one kind of CAN bus switch. There are four independent CAN channels which offer a flexible design of the start or tree network topology. This new topology could resolve the complex CAN bus application, like industrial machinery, building automation, vehicle automation, and etc. Furthermore the I-5534-M integrates and exchanges data between different CAN network which has different baud rate. It helps users to extend the CAN network system. The I-5534-M could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.


LED Indicators

Status: 1 x Power
4 x CAN status

COM Ports

Ports: 1 x RS-232
(9-pin screwed terminal block (TxD, RxD, GND ))


Propagation Delay: 240 us ~ 1360 us


Controller: High Performance Microcontroller
Ports: 4
Baud Rate: 5 k ~ 1 M bps
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor: Selectable 120Ω terminal resistor by internal jump
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter: Yes
Time Delay: [ 1Mbps (8-byte Data) ] ID-11bit => 240 us ;
[ 5Kbps (8-byte Data) ] ID-29bit => 1360 us


Input Range: +10 VDC ~ +30 VDC
Consumption: 1.5 W


Casing: Metal
Dimensions (mm): 116.5 x 127 x 61.3 (W x L x H)
Installation: Wall-Mounting


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
