features and benefits

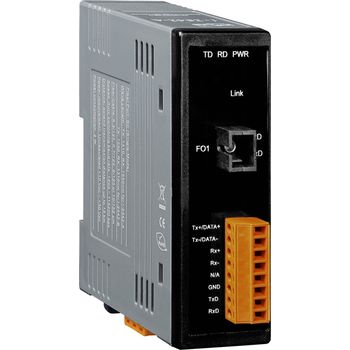

The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line.
This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.
- Automatic RS-485 Direction Control
- Avoids lightning strikes and EMI/RFI interference
- ESD Protection for the RS-232/422/485 Data Line
specifications
EMS Protection| ESD (IEC 61000-4-2) | Yes |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
COM Ports| Ports | 1 x RS-232/422/485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
Fiber| Ports | Single-Mode; SC connector x 1 |
|---|
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 ?m |
|---|
| Transmission Distance (LoS) | 15 km |
|---|
| Wavelength | TX: 1310, RX: 1550 nm |
|---|
Power| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
|---|
| Consumption | 2 W |
|---|
Mechanical| Casing | Plastic |
|---|
| Dimensions (mm) | 33 x 89 x 107 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -30 ~ +75 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
