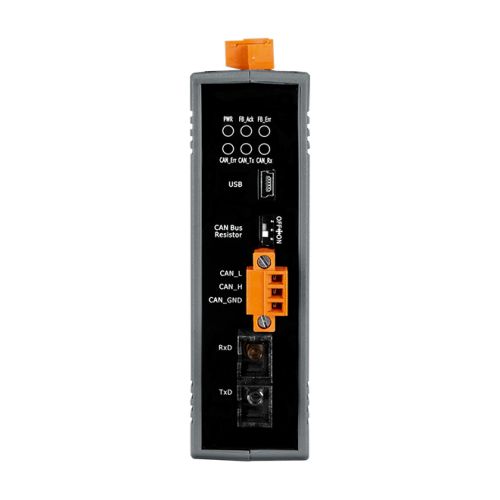

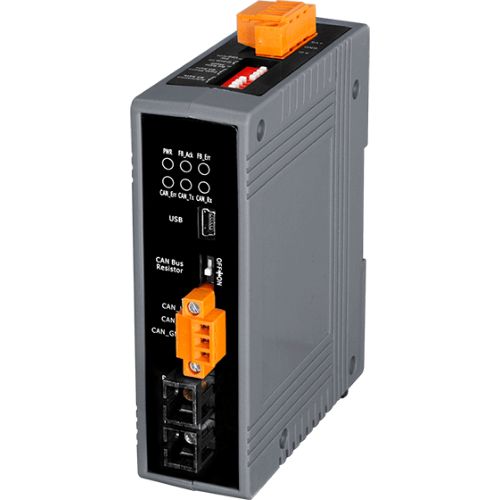

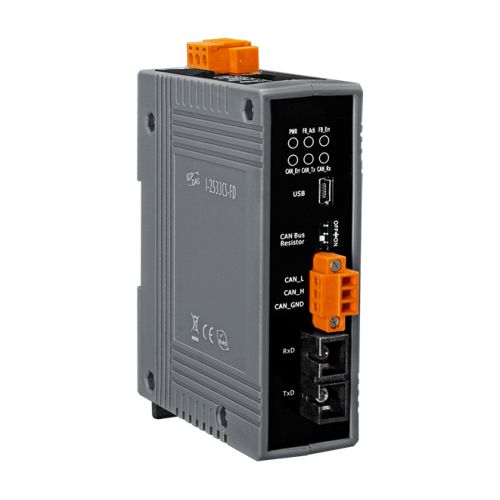

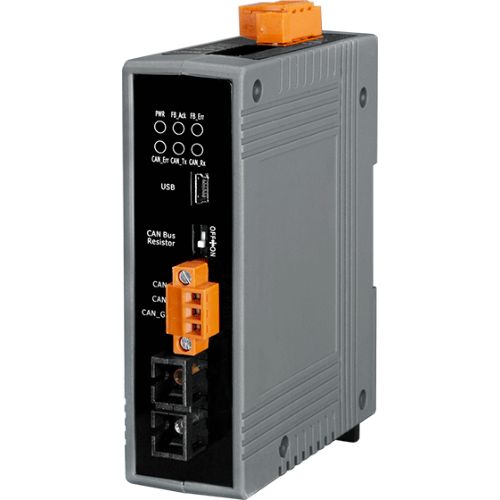

I-2533CS-FD CR, CAN/CAN FD to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector
I-2533CS-FD CR
CAN/CAN FD to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector
Free Shipping
Features
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO (Bosch) standards switchable
- CAN FD bit rates for data field from 100 kbps to 10000 kbps
- CAN bit rates from 10 kbps to 1000 kbps
- Fiber broken line detection
- Support CAN Bus message filter configuration
- Support firmware update via USB
- Basic CAN message routing function via Group ID settings.
- Built-in switchable 120 ohm terminal resistor for CAN Bus

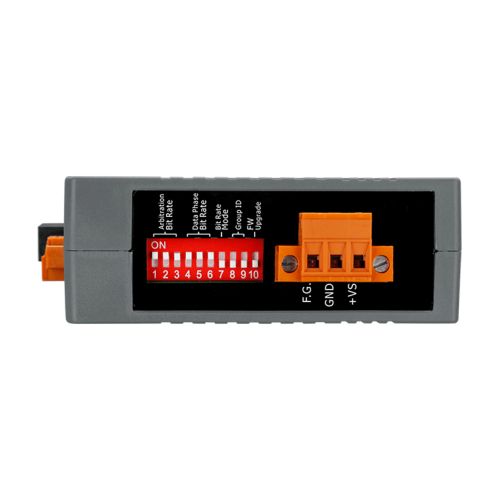

- Dip switch for CAN/CAN FD baud rate configuration
Introduction
The I-2533CS-FD is a local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN/CAN FD and fiber transmission medium, the I-2533CS-FD is specially designed for converting the electrical CAN/CAN FD bus signal to fiber optic cables. Besides, I-2533CS-FD has three more important features. First, the transmission distance limitation of the CAN bus system will not affected due to the different CAN/CAN FD baud rate. It means that the total CAN/CAN FD bus working distance can be extended. Second, the bus error on one CAN/CAN FD network will not affect the operation of another CAN/CAN FD network. Finally, the two CAN/CAN FD network can communication with each other by using different CAN/CAN FD baud rate for highly flexibility.
Specifications
LED Indicators
Status: 1 x Power, 3 x CAN status, 2 x Fiber status
Fiber
Fiber Cable: 8.3/125, 8.7/125, 9/125 or 10/125 μm
Wavelength: 1310 nm
TX Output: -15 dBm Min. , -8 dBm Max.
RX Sensitivity: -34 dBm Max.
RX Overload: -5 dBm Max.
Budget: 19 dBm
Propagation Delay: 190 us (*Note1)
Distance Between Stations: 30 km (9/125 μm recommended)
USB
Specification: USB 2.0 High Speed (480Mbps)
Connector: USB Type B, Mini-B
Driver: Built-in Windows 7/8.1/10
CAN
Ports: 1
Baud Rate: CAN bit rates: 10 k ~ 1 M bps,
CAN FD bit rates for data field: 100 k ~ 10M bps (*Note2)
Terminal Resistor: Switch for 120Ω terminal resistor
Specification: ISO 11898-2, CAN 2.0 A/B and FD
Filter: Yes
Power
Input Range: +10 VDC ~ +30 VDC
Consumption: 3 W
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 127 x 101 (W x L x H)

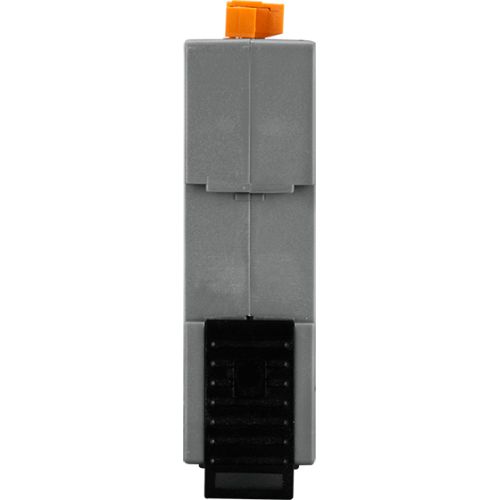

Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
