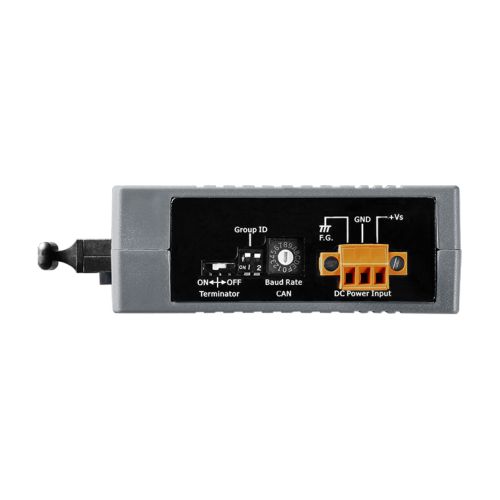

I-2533CS CR

CAN to Single-mode Fiber Bridge; 1 (30 km) single-mode, SC connector



€ 265,58

(VAT excluded)

€ 324,01(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 324,01

Availability: 15 business days

SKU: 94184

Model: I-2533CS CR

Need Help?

The I-2533CS series (I-2533CS, I-2533CS-60, I-2533CS-A and I-2533CS-B) is a local CAN bridge used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN and fiber transmission medium, the I-2533CS series is specially designed for converting the electrical CAN bus signal to fiber optic cables. Besides, the I-2533CS-A/B supports Wavelength Division Multiplexing (WDM) technology so that only a single fiber cable is needed for transmitting bi-directional CAN data. As the I-2533CS-A and I-2533CS-B must be paired because of hardware limitations, this means that the cost of deploying fiber cable can be effectively reduced.
I-2533CS series has three more important features. First, the transmission distance limitation of the CAN bus system will not affected due to the different CAN baud rate. It means that the total CAN bus working distance can be extended. Second, the bus error on one CAN network will not affect the operation of another CAN network. Finally, the two CAN network can communication with each other by using different CAN baud rate for highly flexibility.

I-2533CS: CAN to Single Mode Fiber Bridge; 1 single mode, SC connector (RoHS)

  • Fiber Type: SC ; Single mode ; 100 Base-FX
  • Maximum transmission distance up to 30km at any CAN baud rate
  • NXP TJA1042 CAN transceiver
  • 2500 Vrms isolation on the CAN side
  • Supports both CAN 2.0A and CAN 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • Rotary switch for CAN baud rate configuration
  • Build-in switch for 120 Ω terminator resistor
  • Removable terminal block, Mount easily on DIN-Rail
  • Allows user-defined CAN baud rate
  • Fiber broken line detection
  • Utility tool for CAN message filter configuration
  • The CAN port with the same Group ID can communicate with each other

CAN Interface

Connector: Screwed terminal block (CAN_GND, CAN_L, CAN_H)
Baud Rate (bps): 10 k ~ 1 M
Transmission Distance (m): Depend on baud rate
Terminator Resistor: Switch for 120Ω terminator resistor
Isolation: 2500 Vrms on the CAN side
Specification: ISO 11898-2, CAN 2.0A and CAN 2.0B
Propagation Delay: 190 us **

Fiber Interface

Type: SC Duplex type ; Single mode ; 100 Base-FX
Wave Lenght (nm): 1310
Fiber Cable (μm): 8.3/125, 8.7/125, 9/155 or 10/125
Transmission Distance (km): 30 (indicative only)
Min. TX Output (dBm): -15
Max. TX Output (dBm): -8
Max. RX Sensivity (dBm): -34
Max. RX Overload (dBm): -5
Budget (dBm): 19

UART Interface

COM 1: RS-232 (configuration only)
COM 1 Connector: Screwed terminal block (RXD, TXD, GND)


Round LED: PWR, FB_Ack, FB_Err, CAN_Err, CAN_Tx and CAN_Rx LEDs


Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection

Power Consumption: 0.125 @ 24 VDC


Dimensions: 33.0 mm x 126 mm x 101 mm (W x L x H)
Installation: DIN-Rail


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C

Humidity: 10~90% RH, non-condensing
**Note: The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x12345678 and 8 bytes of data with a value of 0xFF
