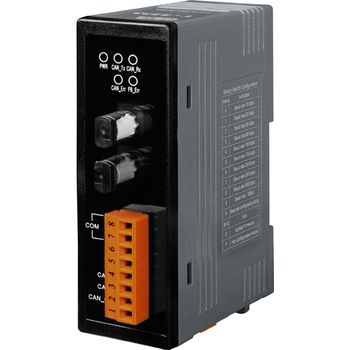

CAN to Fiber Bridge I-2533 The I-2533 is a local CAN bridge used to establish a connection between two CAN bus systems via fiber optic transmission medium. By using I-2533, the transmission distance limitation of the fiber optic system will not decrease due to the higher CAN baud rate. It means that the total network distance can be extended. Moreover, the bus error on one CAN network don’t affect the operation of another CAN network. The two CAN network can communicate with each other by using different CAN baud rate for highly flexibility. These features help users’ applications more powerful and flexible.
- Fiber Port: ST (Multi-mode)
- Maximum transmission distance up to 2 km at any CAN baud rate
- 82C250 CAN transceiver
- 2500 Vrms iCoupler isolation on the CAN side
- Support both CAN 2.0A and CAN 2.0B specification
- Fully compatible with the ISO 11898.2 standard
- Built-in switch for 120Ω terminator resistor
- Up to 100 CAN nodes on CAN channel
- Removable terminal block
- Mount easily on DIN-rail

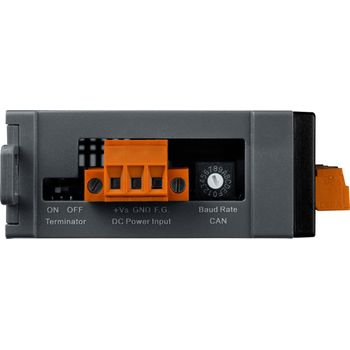

- Rotary switch for CAN baud rate configuration
- Allor user-defined baud rate
- Fiber broken line detection
- Utility tool for message filter configuration
CAN Interface
Connector: Screwed terminal block (CAN_GND, CAN_L, CAN_H, N/A for others)
Baud Rate (bps): 10 k ~ 1 M
Transmission Distance (m): Depend on baud rate
Terminator Resistor: Switch for 120Ω terminator resistor
Isolation: 3000 Vdc for DC-to-DC, 2500 Vrms for photo-couple< /p> Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Time Delay: 120 us max (CAN to fiber or fiber to CAN)
Fiber Interface
Connector: ST (Multi-mode)
Wave Length: 850 nm
Fiber Cable: 50 / 125 μm, 62,5 / 125 μm, 100 / 140 μm (62,5 / 125 μm is reccommended)
Transmission Distance (m): 2 km max (in 62.5/125 μm fiber cable) at any CAN baud rate
LED
Round LED: PWR LED, CAN_Tx LED, CAN_Rx LED, Err LED, FB_Err LED
Power
Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 3 W
Mechanism
Installation: DIN-Rail
Dimensions: 32.3mm x 77.5mm x 99.0mm (W x L x H)
Environment
Operating Temp: -25 ~ 75 ℃
Storage Temp: -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
