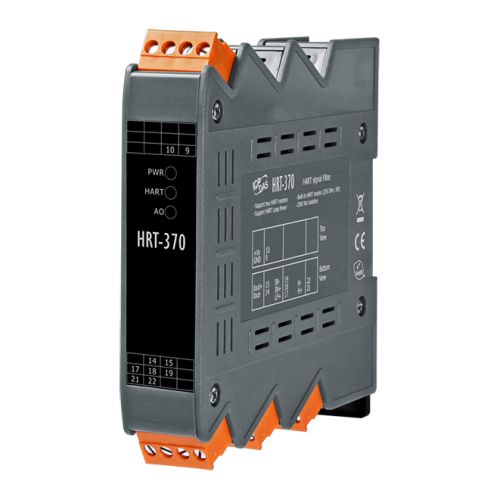

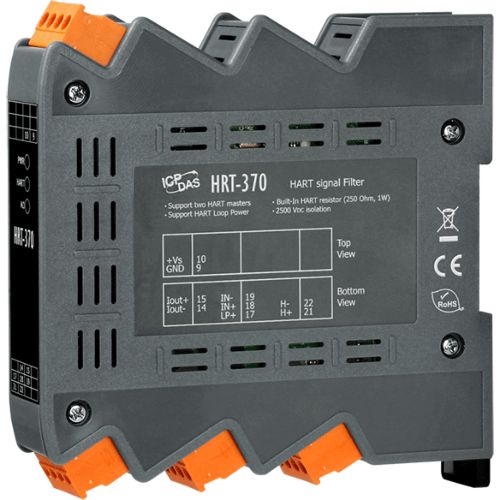

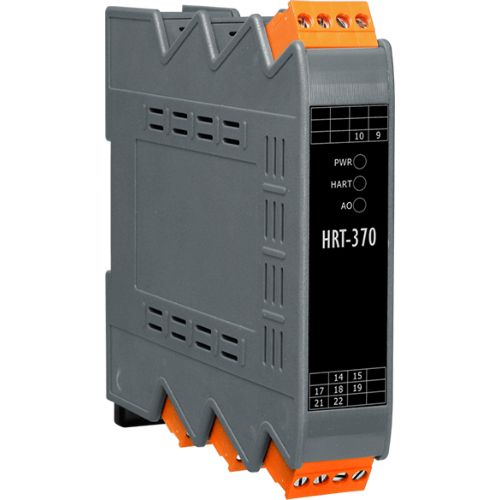

HRT-370 CR, HART signal filter
HRT-370 CR
HART signal filter
Free Shipping
Features
- 1 analog current output (HART signal filter) channel
- 1 by pass HART signal channel
- Support HART Burst mode
- Support point-to-point HART mode
- Allow two HART masters
- Support Loop Power function (module provides +30V)
- 4KV ESD Protection
- 250Ω load resistor
Introduction
HRT-370 is a HART signal filter specially designed to solve the issue that analog signal gets interfered while additional HART signal adding to communication process. When connecting HRT-370 to a HART instrument, it splits the input HART signal to two output channels, one keeps the original HART signal and another filter the HART signal out to output pure analog signal. Therefore, users can make both HART and analog current data collection and processing easier and more precise by applying HRT-370.
Specifications

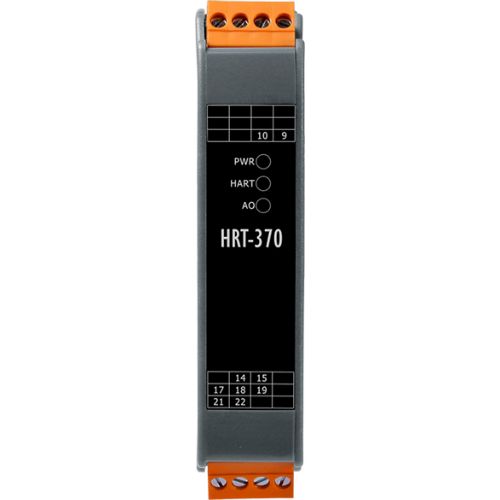

LED Indicators
Status: PWR: Module power status
HART: HART connection status
AO: AO connection status
Analog Output
Zero Drift: ± 0.1% FSR @25 °C
± 0.5% FSR @-30/+80°C
Span Drift: ± 0.1% FSR @25 °C
± 0.5% FSR @-30/+80°C
Voltage Output Capability: External +30V @ 800Ω (Sink)
Response Time: 40ms @ 250 Ω
Isolation: 2500VDC
HART
Device: 2-wired or 4-wired HART devices (Point to Point)
Isolation: 2500 VDC
Input Impedance: 250Ω±5% (2W)
Loop Power: Yes (module provides +30V output)
Auxiliary Supply: 24V @ 20mA
Power
Reverse Polarity Protection: Power reverse polarity protection, Over-voltage brown-out protection
Input Range: Unregulated +10 ~ +30 VDC
Consumption: Maximum: (20mA) => 0.05mA @ 30VDC, 1.5W
Mechanical
Dimensions (mm): 25 x 116 x 120
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 5% ~ 95% RH, Non-condensing
