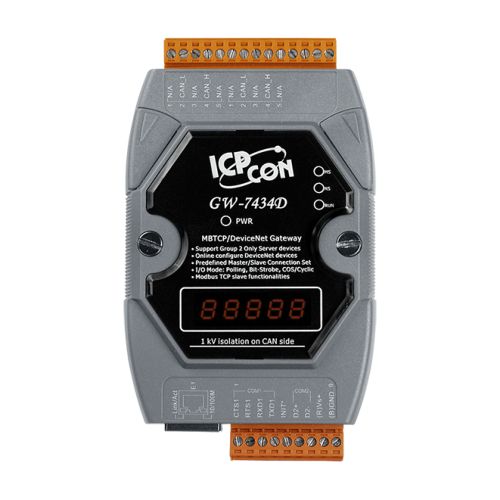

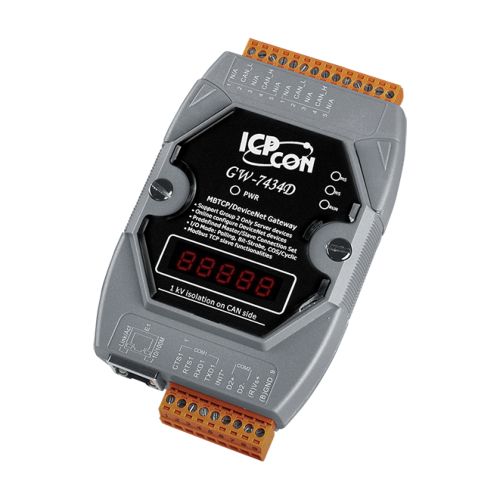

GW-7434D-G CR
Modbus TCP/RTU/ASCII Slave to DeviceNet Master Gateway
The GW-7434D from ICP DAS is a solution that provides a communication protocol transfer the DeviceNet and Modbus TCP protocol and solves a mission-critical problem: connecting an existing DeviceNet network to Ethernet-base PLCs and PC-based configuration and monitor system. It enables DeviceNet networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. The GW-7434D can be a DeviceNet master device in the CAN bus on the DeviceNet network. It supports “Predefined Master/Slave Connection Set” and “Group 2 Only Server” functions to communication with slave devices.
- Supports maximum DeviceNet devices up to 63
- Predefined Master/Slave Connection Set
- Supports one Poll, one Bit-Strobe, one COS or one Cyclic IO connection for each DeviceNet device
- Supports on-line adding device into and removing device from network
- Converts single Modbus TCP to multi Modbus RTU devices, setting by Utility
- Supports VxComm technique for every COM ports of controllers, setting by Utility
- Supports Modbus RTU to DeviceNet master, setting by Utility
- Allows multi-client access simultaneously
Hardware
CPU: 80186, 80 MHz or compatible
SRAM/Flash/EEPROM: 512 KB / 512 KB / 16 KB
Watchdog: Watchdog IC
CAN Interface
Controller: NXP SJA1000T with 16 MHz clock
Transceiver: NXP 82C250
Connector: 5-pin screwed terminal block (CAN_L, CAN_H, N/A for others)
Isolation: 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Protocol: DeviceNet Volumn I ver2.0, Volumn II ver2.0
UART Interface
COM 1: RS-232
COM 1 Connector: 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND )
COM 2: RS-485 (Self-turner inside)
COM 2 Connector: 2-pin screwed terminal block (DATA+, DATA-)
Ethernet Interface
Controller: 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector: RJ-45 with LED indicator
Protocol: Modbus TCP
Power
Power supply: Unregulated +10 ~ +30 VDC
Protection: Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption: 2.5 W
Mechanism
Dimensions: 72mm x 122mm x 33mm (W x L x H)
Environment
Operating Temp. -25 ~ 75 ℃
Storage Temp. -30 ~ 80 ℃
Humidity: 10 ~ 90% RH, non-condensing
