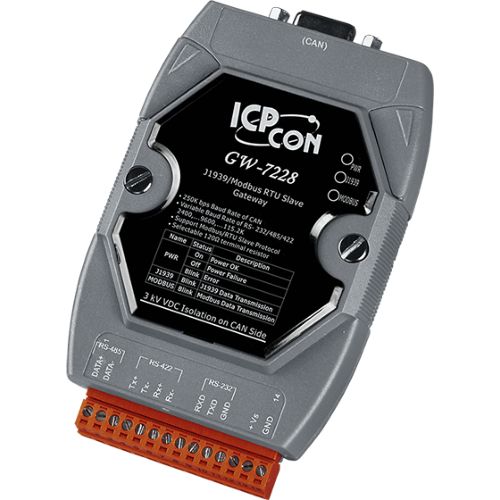

GW-7228-G CR

J1939/Modbus RTU Slave Gateway



€ 391,98

(VAT excluded)

€ 478,22(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 478,22

Availability: 15 business days

SKU: 118798

Model: GW-7228-G CR

Need Help?


  • Built-in jumper to select 120 ohm terminal resistor
  • Watchdog inside
  • Transmission and reception of all types of J1939 messages, including PDU1, PDU2, broadcast and destination specific
  • J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes)
  • Support BAM of Connection Management Message
  • Network addresses management
  • Support Modbus RTU slave protocol
  • Configurable for Modbus Network ID(1~250)


The GW-7228 is a solution that provides a protocol conversion between J1939 and Modbus RTU. For J1939 network, the GW-7228 supports PDU1, PDU2, broadcast and destination specific type of J1939 messages. From the view of Modbus RTU network, the GW-7228 is a Modbus RTU slave to reply the request from Modbus RTU master. We provide Utility software for users to configure the parameters of J1939 / Modbus RTU of the GW-7228. The application fields can be Diesel power-train applications, In-Vehicle networks for trucks and buses, etc.
The following figure shows the application architecture for the GW-7228


Diesel power-train applications
In-Vehicle networks for trucks and buses
Truck-Trailer connections
Fleet management systems
On Board Diagnostics
Vehicle Automation


LED Indicators

Status: PWR / J1939 / MODBUS

COM Ports

Ports: 1 x RS-232(TXD, RXD, GND)
1 x RS-422(Tx+, Tx-, Rx+, Rx-)
1 x RS-485(D+, D-)
Baud Rate: 9600, 19200, 38400, 57600, 115200
Protocol: Modbus RTU


Ports: 1
Baud Rate: 250k
Isolation: 3000 VDC power protection on CAN side, 2500Vrms photo-couple isolation on CAN bus
Terminal Resistor: Jumper for 120 Ω terminal resistor
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Pin Assignment: C.I.A. DS-102 (CAN_H=7, CAN_L=2)


Consumption: 1.5 W


Dimensions (mm): 108 x 72 x 35 (H x W x L)
Installation: DIN-Rail


Operating Temperature: -25 ~ +75 ℃
Storage Temperature: -30 ~ +80 ℃
Humidity: 10 ~ 90% RH, Non-condensing
