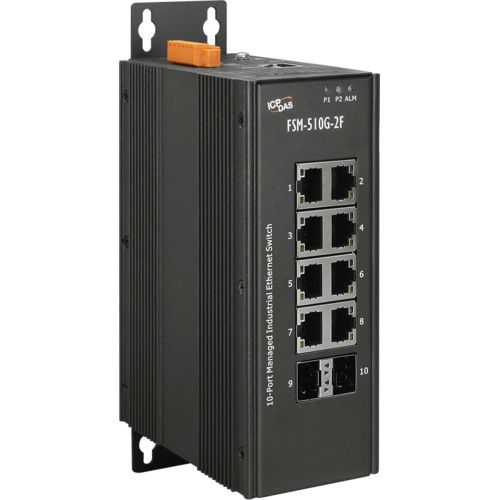

FSM-510G-2F CR, 8-port 10/100/1000Base-T + 2 (100/1G) SFP L2 Plus Managed Switch
FSM-510G-2F CR
8-port 10/100/1000Base-T + 2 (100/1G) SFP L2 Plus Managed Switch
Free Shipping
Features
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- L2+ features provide better manageability, security, QoS, and performance
- Network redundant Ring fail-over protection (< 20 ms)
- Multicasting support IGMP v1/v2/v3, proxy & snooping
- Multicast/Broadcast/Flooding Storm Control
Introduction
FSM-510G-2F is a L2 Managed Switch that meets all IEEE 802.3ab/u/x/z Gigabit, Gigabit Ethernet and Ethernet specifications. It provides 8 gigabit Ethernet ports (10/100/1000 Mbps TP) 2 SFP ports.
The switch can be managed through RS-232 serial port via direct connection, or through Ethernet port using Telnet or Web-Based management unit, associated with SNMP agent. With the SNMP agent, the network administrator can logon the switch to monitor, configure and control each port activity in a friendly way. The overall network management is enhanced and the network efficiency is also improved to accommodate high bandwidth applications. In addition, the switch features comprehensive and useful function such as QoS (Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON .
Specifications
EMS Protection
EFT (IEC 61000-4-4): Yes
ESD (IEC 61000-4-2): Yes
Surge (IEC 61000-4-5): Yes
LED Indicators
Status: POWER, ALARM , TP Port LED
Ethernet
Ports: 8 x RJ-45, 10/100/1000Base-TX
Standards: Port Mirroring helps supervisor monitoring network
IEEE 802.1Q tag-based VLAN for performance
IEEE 802.1X Access Control improve network security
IEEE 802.1D Compatible, IEEE802.1w Rapid Spanning Tree & IEEE802.1s Multiple Spanning Tree
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3
Unknown Unicast/Broadcast/Multicast storm control
IP-MAC-Port binding for LAN security
QCL Based on Application traffic for QoS and rate limitation management
Supports DHCP snooping
ACL Based on Ethernet Type/ARP/IPv4 for packets permit or deny, rate limitation and port copy
Supports "power saving" for Green Ethernet requirement
Supports LLDP (Link Layer Discovery Protocol) provides a standards-based method for enabling switches to advertise themselves.
Processing Type: Store & forward
MAC Table: 8 K
Protocol: VLAN, QoS, Port Trunk, NTP, TELNET, SNMP, IGMP, IEEE802.1X, LLDP
Redundant Strategy: STP, RSTP
Isolation: 1500 Vrms 1 minute
Fiber
Ports: 2 x 100/1000 Mbps SFP Fiber Module slots
COM Ports
Ports: 1 x RS-232
Power
Input Range: +12 VDC ~ +48 VDC
Consumption: 10.5 W
Mechanical
Casing: Metal
Dimensions (mm): DIN-rail mounting: 57 x 164 x 121 (W x L x H)
Wall mounting: 57 x 203 x 113 (W x L x H)
Installation: DIN-rail mounting or wall mounting
Ingress Protection Rating: IP30
Environment
Operating Temperature: -40 °C ~ +75 °C
Storage Temperature: -40 °C ~ +85 °C
Humidity: 5 ~ 95% RH, non-condensing
