FR-32R/DIN ICP DAS FRnet

FR-32R/DIN ICP DAS

FR-32R/DIN

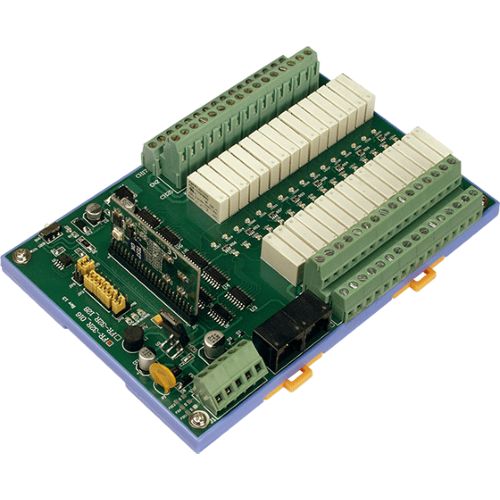

FRnet I/O Module with 32-channel Relay

Quantity:

Price

€ 260,32

(VAT excluded)

€ 317,59(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 317,59

Availability: 15 business days

SKU: 3976

Model: FR-32R/DIN

Need Help?


  • Built-in FRnet interface
  • Real I/O synchronization
  • Innovative token-stream technology
  • Support Broadcasting
  • Real Deterministic Control
  • Fixed Scan time: 256 points @ 2.88 ms
  • Each bank consists of 8 input channels and has its own ground reference
  • ASIC design without CPU
  • Memory-map I/O
  • No protocol and no software overhead
  • Easy Programming and OS-independent
  • Din-rail mounting
  • Two-Wire Cabling
  • Jumper setting
  • Interface circuit

The FR-32P has 32-channel isolated digital input. Not like traditional digital I/O board, the FR series I/O module has an FRnet interface. It can be used as a distributed remote I/O module or a MagicWire module. The user should select the correct setting when using these functions. The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can extend the remote I/O of PC, PAC, μPAC and PLC easily. Further information about the networking of FR-32P, refer to our I-7188EF, I-8172 , FRB-100/200.

Interface

Communication speed: 250K bps
Communication distance: 400m max
Number of channels: 32

Digital Logic Level:
       Input low voltage: 0 ~ +/-1V
       Input high voltage: 3.5 VDC ~ 30 VDC
       Input impedance: 3K; 1/4W
Response time: 1 KHz max
Power Requirement: 10~30V
Wire cable: CPEV 0.9S (2P Twisted-pair wire)
Power consumption: 24V@140mA(max)
Operating temperature: -25°C ~ +75°C
Operating humidity: 10% ~ 90% RH, non-condensing
Storage temperature: -30°C ~ +85°C
Storage humidity: 5% ~ 95% RH, non-condensing
Dimensions: 173 mm x 117 mm
