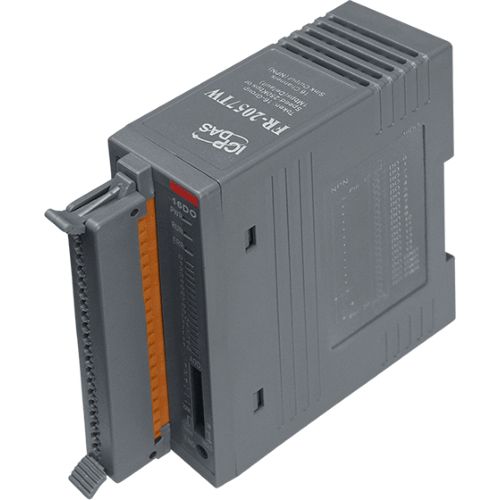

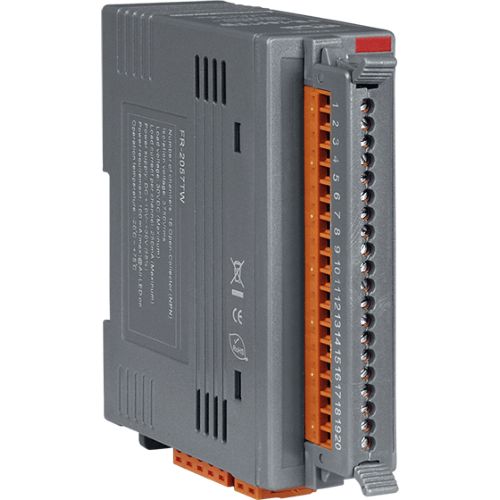

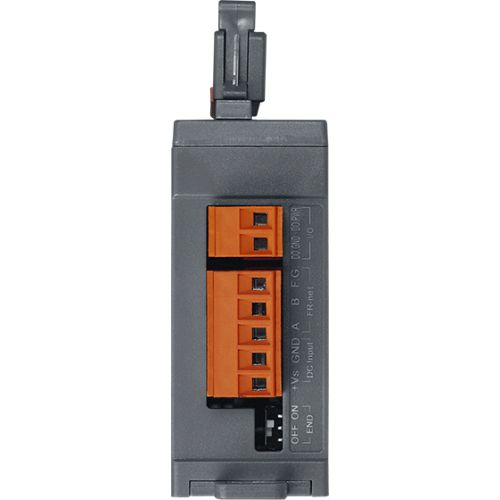

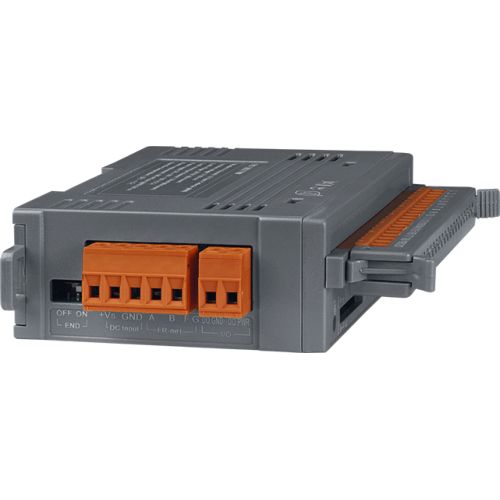

FR-2057TW CR
FRnet I/O Module with 16-channel Isolated High Current Digital output (Sink, NPN, 30VDC, 250mA, Max)
Free Shipping
Features
- Built-in Wire-saving FRnet DI/DO control
- High-speed transmission reliability
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
- DIN-Rail mountable
Introduction
The FR-2053TA has 16-channel isolated Sink/Source input, while the FR-2057TW has 16-channel isolated sink output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TW; refer to literature related to I-7188EF, I-8172, FRB-100/200/200U.
Specifications
Isolation
Intra-module Isolation: 3750 Vrms
EMS Protection
EFT (IEC 61000-4-4): Yes
ESD (IEC 61000-4-2): Yes
Surge (IEC 61000-4-5): Yes

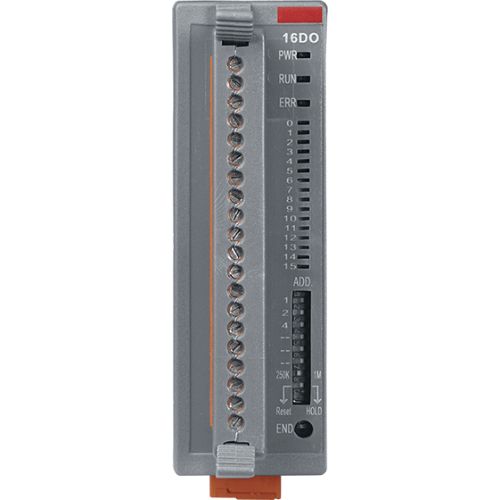

LED Indicators
Status: Power, Communication Run, Communication Error, Terminal Resistor, Digital Output
Digital Output
Channels: 16
Type: Open Collector
Sink/Source (NPN/PNP): Sink (NPN)
Load Voltage: 30 VDC Max.
Load Current: 250 mA Max.
Isolation: 3750 Vrms
FRnet
Wire Cable: Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may be changed
Transfer Speed: 250 kbps and 1 Mbps (Default)
Transfer Distance: Max. 400 m for speed 250 kbps
Max. 100 m for speed 1Mbps (Default)
Cyclic Time: 2.88 ms for speed 250 kbps
0.72 ms for speed 1 Mbps (Default)
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC (Non-isolation)
Consumption: 2.4 W Max.
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 102 x 107 (W x L x H)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
