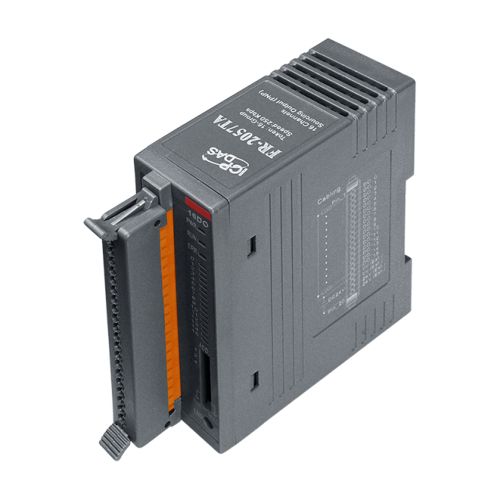

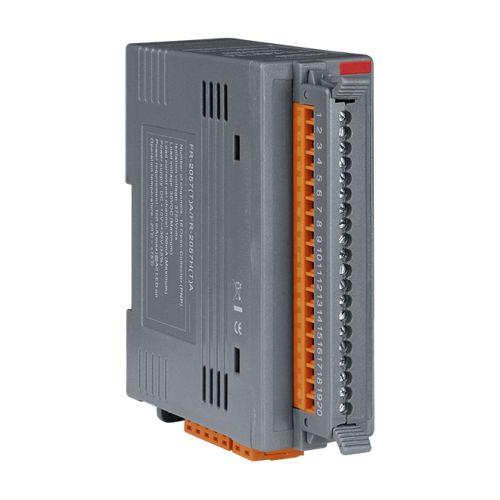

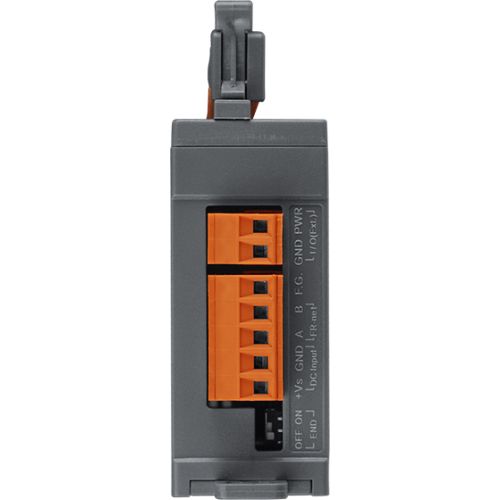

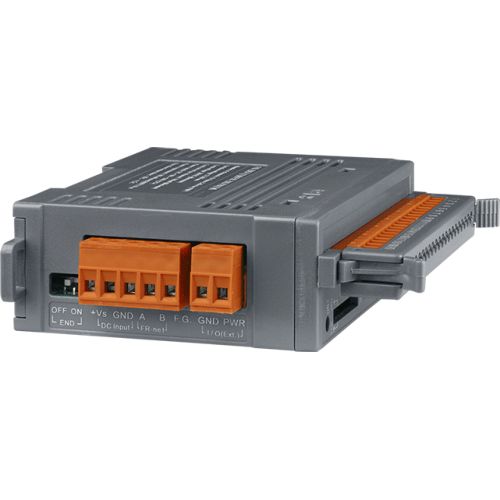

FR-2057TA CR
FRnet I/O Module with 16-channel Isolated Digital output (Source, PNP, 30VDC) (250 kbps, Max. 400m)
Free Shipping
Features
- Built-in Wire-saving FRnet DI/DO control
- High-speed transmission reliability
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
- DIN-Rail mountable
Introduction
The FR-2053TA/FR-2053HTA has 16-channel isolated Sink/Source input, while the FR-2057TA/FR-2057HTA has 16-channel isolated source output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TA; refer to literature related to I-7188EF, I-8172W, FRB-100200U.
Specifications
Isolation
Intra-module Isolation: 3750 Vrms
EMS Protection:
EFT (IEC 61000-4-4): Yes
ESD (IEC 61000-4-2): Yes
Surge (IEC 61000-4-5): Yes
LED Indicators

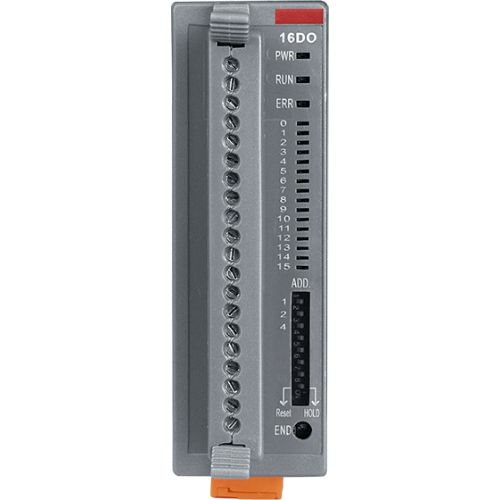

Status: Power, Communication Run, Communication Error, Terminal Resistor, Digital Output
Digital Output
Channels: 16
Type: Open Collector
Sink/Source (NPN/PNP): Source (PNP)
Load Voltage: 30 VDC Max.
Load Current: 100 mA Max.
Isolation: 3750 Vrms
FRnet
Wire Cable: 2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change
Transfer Speed: 250 kbps for FR-2057TA
1 Mbps for FR-2057HTA
Transfer Distance: Max. 400 m for FR-2057TA
Max. 100 m for FR-2057HTA
Cyclic Time: 2.88 ms for FR-2057TA
0.72 ms for FR-2057HTA
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC (Non-isolation)
Consumption: 2.4 W Max.
Mechanical
Casing: Plastic
Dimensions (mm): 33 x 102 x 107 (W x L x H)
Installation: DIN-Rail Mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
