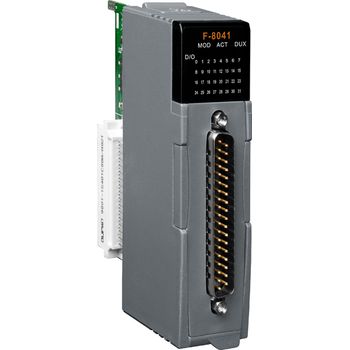

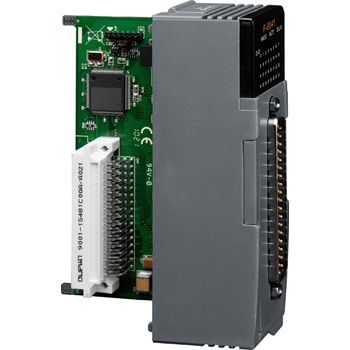

F-8041 CR ICP DAS Digital IO Modules

• 32 digital output (sink) channels
• Safety value (Preset/Hold)
• Power-on(Initial) value
• Output channel LED indication
• RoHS compliance
• 3000 VDC isolation from output to backplane
• 3000 VDC isolation from output to frame ground
• Redundancy
• Fast redundant switching time (<100us)

INTRODUCTION

The F-8041 is a digital output module with 32 NPN channels. The output channel of F-8041 is a current sinking channel and can drive the load up to 0.5A current. The digital output channels offer LED to indicate digital output status. Moreover, the module offers 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages the channels, the system (backplanes, other modules, and control unit) won't be affected because the benefit of isolation.

APPLICATIONS

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

SPECIFICATIONS

Feature
Redundant: Yes (Switching time < 100us)
Termination board break off detection: Yes
Safety output: Yes (Preset/Hold)
Power-on (Initial) output: Yes
LED indicator: 1 RUN, 1 ACT, 1 DUX
 32 as channel 0~31 status

Digital Output
Channels: 32 (NPN)
Type: Current sinking, Open-collector
Rated voltage: 36 VDC
Output load current: Singel channel: 2mA to 500 mA
 Maximum of total channels: 4.5 A

Output switching time: 100 us
Output impedance: 2 Ω
Isolation: 3000 VDC

Certification
EMC: EN61000-6-2, EN61000-6-4
 IEC/EN 61000-4-2, IEC/EN 61000-4-4

General
Termination board: DN-DO-16DR-A, DN-DO-16DR-B, DN-DIO-M
Maximum power consumption: 2.1 W @ 24 VDC
Operating temperature: -25 °C ~ +75 °C
Humidity: 5 ~ 95 % RH, Non-condensing
Weight: 300 g
Dimensions (W x L x H): 30mm x 85mm x 115mm
