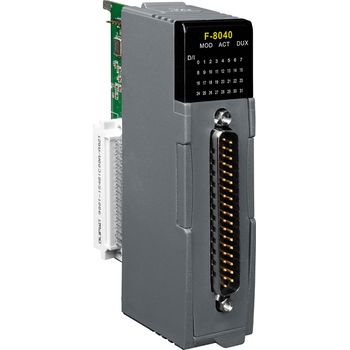

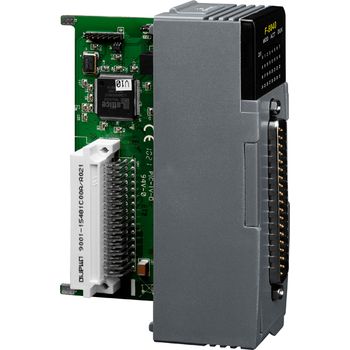

F-8040 CR
32-ch Isolated Digital input Redundant Module
- 32 digital input (sink/source) channels
- Digital filter (1~32767ms)
- Input channel LED indication
- RoHS compliance
- 3000 VDC isolation from input to backplane
- 3000 VDC isolation from input to frame ground
- Redundancy
- Fast redundant switching time (<100us)
INTRODUCTION
The F-8040 features 32 digital input (sink/source) channels. Either sink- or source-type input can be selected via different wiring. The F-8040 can determine binary input from a DC voltage source. The digital input channels also offer LED indicators to locally display digital input status. Moreover, the module offers 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages the channels, the system (backplanes, other modules, and control unit) won't be affected because the benefit of isolation.
APPLICATIONS
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
SPECIFICATIONS
Feature
Redundant: Yes (Switching time < 100us)
Termination board break off detection: Yes
Digital filter: Yes (1ms~32767ms)
LED indicator: 1 RUN, 1 ACT, 1 DUX
32 as channel 0~31 status
Digital Input
Channels: 32 (One COM for all channels)
Type: Wet, current sinking/sourcing
Rated voltage: 36 VDC
Input voltage range, “1”: 18 VDC ~ 30 VDC
Input voltage range, “0”: 11 VDC
Detection time: 100us
Input impedance: 5.2KΩ, 0.25W
Nominal input channel current: 4.85 mA @ 24 VDC
Maximum input current: 7 mA @ 24 VDC
Field-to-Logic isolation: 3000 VDC
Certification
EMC: EN61000-6-2, EN61000-6-4
IEC/EN 61000-4-2, IEC/EN 61000-4-4
General
Termination board: DN-DI-32DW, DN-DIO-M
Power consumption: 1.8 W @ 24 VDC
Operating temperature: -25 °C ~ +75 °C
Humidity: 5 ~ 95 % RH, Non-condensing
Weight: 300 g
Dimensions (W x L x H): 30mm x 85mm x 115mm
