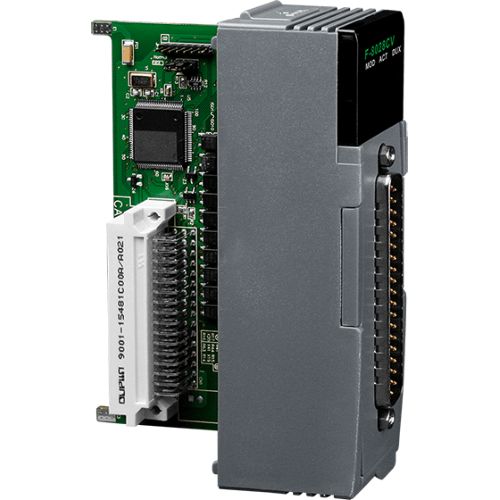

F-8028CV CR ICP DAS Analog IO Modules

The F-8028CV is a 16-bit, 8-channel analog output module that features programmable output range on all channels. It provides digital to analog conveter controlled by the system module to convert the digital data into output signals. Users can specify the start up and safety value through configuration software. Moreover, this module has ±0.05% accuracy for highly accurate application. Besides, the F-8028CV provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.



8 current/voltage output channels

Overrange output

Short circuit protection

Open wire detection

RoHS compliance

3000 VDC isolation from output to backplane

3000 VDC isolation from output to frame ground

Redundancy

Fast redundant switching time (<1 ms)







EFT (IEC 61000-4-4) :Yes

ESD (IEC 61000-4-2) :Yes



Status :1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status)





Type :0 ~ 20 mA, 4 ~ 20 mA (current sourcing)

0 ~ 5 V, ±5 V, 0 ~ 5 V, ±10 V



Range :0 ~ 20 mA: +20% (0 ~ 24 mA)

4 ~ 20 mA: ±25% (0 ~ 24 mA)

0 ~ 5 V: +20% (0 ~ 6 V)

±5 V: ±20% (±6V)

0 ~ 5 V: +20% (0 ~ 12 V)

±10 V: ±20% (±12V)



Resolution :16 bit

Accuracy :±0.05% FSR

Zero Drift :±0.2 μV/℃

Span Drift :±25 ppm/℃

Short Circuit Protection :Yes

Response Time :<200 μS

Open Wire Detection :Yes (4 ~ 20 mA)

Voltage Output Capability :500 Ω

Current Load Resistance :750 Ω

Power-on Value :Yes

Safe Value :Yes

Isolation :3000 VDC



I/O Type :DN-AIO-M



Consumption :1 W



Dimensions (mm) :30 x 85 x 115

Weight :300 g



Operating Temperature :-25 °C ~ +75 °C

Humidity :5 ~ 95% RH, Non-condensing
